Through-hole round LED are suitable for all applications requiring backlighting and status indication. LEDs make the consumer electronics products and automotive interiors more attractive and characteristic. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.
Through-hole round LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, 8mm, 10mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue, orange and UV.
These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color
|
Size(mm)
|
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| 50xxx2E Series | 503GC2E-1BC |
|
Super Yellow Green | Water Clear | 5 | 1700 | 571 | 15 | Download | |
| 50xxx2E Series | 503VC2E-2BC |
|
Super Bright Red | Water Clear | 5 | 5000 | 624 | 15 | Download | |
| 50xxx2E Series | 504PGD2E-G5-2B |
|
Pure Green | Green Diffused | 5 | 2900 | 525 | 60 | Download | |

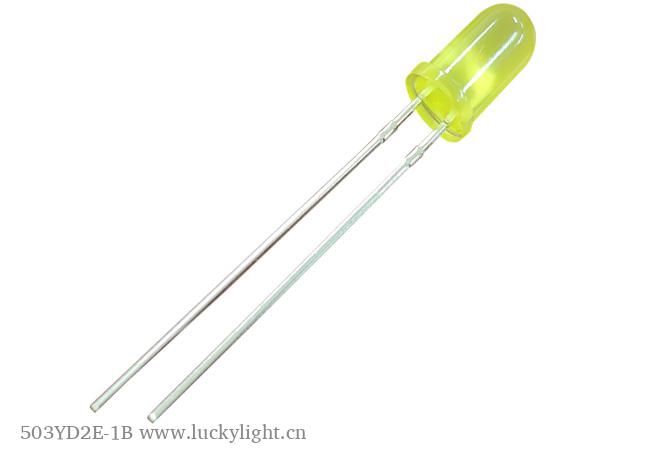

| 50xxx2E Series | 503YD2E-1B |
|
Super Bright Yellow | Yellow Diffused | 5 | 210 | 590 | 60 | Download | |
| 50xxx2E Series | 503GD2E-1B |
|
Super Yellow Green | Green Diffused | 5 | 70 | 571 | 60 | Download | |
| 50xxx2E Series | 503AC2E-2BC |
|
Super Bright Orange | Water Clear | 5 | 3800 | 605 | 15 | Download | |
| 50xxx2E Series | 503AC2E-2BE |
|
Super Bright Orange | Water Clear | 5 | 1300 | 605 | 45 | Download | |
| 50xxx2E Series | 503AC2E-4CE |
|
Super Bright Orange | Water Clear | 5 | 3800 | 605 | 45 | Download | |
| 50xxx2E Series | 503VC2E-4CC |
|
Super Bright Red | Water Clear | 5 | 14000 | 624 | 15 | Download | |
| 50xxx2E Series | 503VC2E-2BE |
|
Super Bright Red | Water Clear | 5 | 1000 | 624 | 45 | Download | |
| 50xxx2E Series | 503YC2E-2BC |
|
Super Bright Yellow | Water Clear | 5 | 5000 | 590 | 15 | Download | |
| 50xxx2E Series | 503YC2E-2BE |
|
Super Bright Yellow | Water Clear | 5 | 1000 | 590 | 45 | Download | |
| 50xxx2E Series | 503YC2E-4CC |
|
Super Bright Yellow | Water Clear | 5 | 14000 | 590 | 15 | Download | |
| 50xxx2E Series | 503VC2E-4CE |
|
Super Bright Red | Water Clear | 5 | 5000 | 624 | 45 | Download | |
| 50xxx2E Series | 503YC2E-4CE |
|
Super Bright Yellow | Water Clear | 5 | 2200 | 590 | 45 | Download | |
| 50xxx2E Series | 503VD2E-1B |
|
Super Bright Red | Red Diffused | 5 | 350 | 624 | 60 | Download | |
| 50xxx2E Series | 504BC2E-B4-2BC |
|
Blue | Water Clear | 5 | 11000 | 470 | 15 | Download | |
| 50xxx2E Series | 504BC2E-B4-2BE |
|
Blue | Water Clear | 5 | 5000 | 470 | 45 | Download | |
| 50xxx2E Series | 504PGC2E-G5-2BE |
|
Pure Green | Water Clear | 5 | 23000 | 525 | 45 | Download | |
| 50xxx2E Series | 504UVAC2E-Q5C |
|
UV | Water Clear | 5 | 350 | λp-395 | 15 | Download | |
| 50xxx2E Series | 504UVAC2E-Q6C |
|
UV | Water Clear | 5 | 350 | λp-400 | 15 | Download | |
| 50xxx2E Series | 504PGC2E-G5-2BC |
|
Pure Green | Water Clear | 5 | 39000 | 525 | 15 | Download | |
| 50xxx2E Series | 503AC2E-4CC |
|
Super Bright Orange | Water Clear | 5 | 11000 | 605 | 15 | Download | |
| 50xxx2E Series | 504BD2E-B4-2B |
|
Blue | Blue Diffused | 5 | 600 | 470 | 60 | Download | |
| 50xxx2E Series | 503AD2E-1B |
|
Super Bright Orange | Orange Diffused | 5 | 120 | 605 | 60 | Download |
