Through-hole round LED are suitable for all applications requiring backlighting and status indication. LEDs make the consumer electronics products and automotive interiors more attractive and characteristic. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.
Through-hole round LEDs are offered in a variety of packages such as 3mm, 4mm, 5mm, 8mm, 10mm, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue, orange and UV.
These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color
|
Size(mm)
|
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| 50xxx2E Series | 503VC2E-2BC |
|
Super Bright Red | Water Clear | 5 | 5000 | 624 | 15 | Download | |
| 48xxx1F Series | 483YC1F-4C |
|
Super Bright Yellow | Water Clear | 4.8 | 780 | 590 | 100 | Download | |
| 48xxx1F Series | 483YC1F-1B |
|
Super Bright Yellow | Water Clear | 4.8 | 460 | 590 | 100 | Download | |
| 48xxx1F Series | 483VC1F-4C |
|
Super Bright Red | Water Clear | 4.8 | 1700 | 624 | 100 | Download | |
| 48xxx1F Series | 483VC1F-1B |
|
Super Bright Red | Water Clear | 4.8 | 460 | 624 | 100 | Download | |
| 48xxx1F Series | 484PGC1F-G5-2B |
|
Pure Green | Water Clear | 4.8 | 6500 | 525 | 60 | Download | |
| 48xxx1F Series | 484BC1F-B4-2B |
|
Blue | Water Clear | 4.8 | 1300 | 470 | 60 | Download | |
| 48xxx1F Series | 483AC1F-4C |
|
Super Bright Orange | Water Clear | 4.8 | 1700 | 605 | 100 | Download | |
| 48xxx1F Series | 483AC1F-1B |
|
Super Bright Orange | Water Clear | 4.8 | 460 | 605 | 100 | Download | |
| 48xxx1C Series | 483AC1C-1B |
|
Super Bright Orange | Water Clear | 4.8 | 270 | 605 | 100 | Download | |
| 30xxx2P Series | 304YD2P-1B |
|
Super Bright Yellow | Yellow Diffused | 3 | 160 | 590 | 80 | Download | |
| 30xxx2P Series | 304VD2P-1B |
|
Super Bright Red | Red Diffused | 3 | 270 | 624 | 80 | Download | |
| 30xxx2P Series | 304PGD2P-G5-2B |
|
Pure Green | Green Diffused | 3 | 6500 | 525 | 60 | Download | |
| 30xxx2P Series | 304GD2P-1B |
|
Super Yellow Green | Green Diffused | 3 | 160 | 571 | 80 | Download | |
| 30xxx2P Series | 304BD2P-B4-2B |
|
Blue | Blue Diffused | 3 | 780 | 470 | 60 | Download | |
| 30xxx2P Series | 304AD2P-1B |
|
Super Bright Orange | Orange Diffused | 3 | 160 | 605 | 80 | Download | |
| 30xxx2C Series | 304YD2C-1B-L38 |
|
Super Bright Yellow | Yellow Diffused | 3 | 350 | 590 | 60 | Download | |

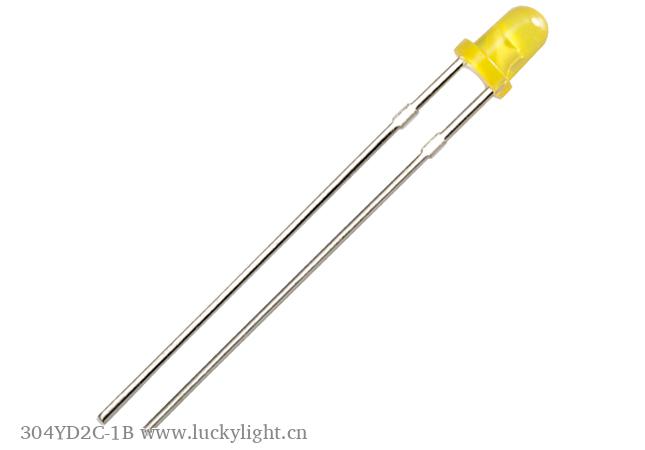

| 30xxx2C Series | 304YD2C-1B |
|
Super Bright Yellow | Yellow Diffused | 3 | 350 | 590 | 60 | Download | |
| 30xxx2C Series | 304VD2C-1B-L38 |
|
Super Bright Red | Red Diffused | 3 | 460 | 624 | 60 | Download | |

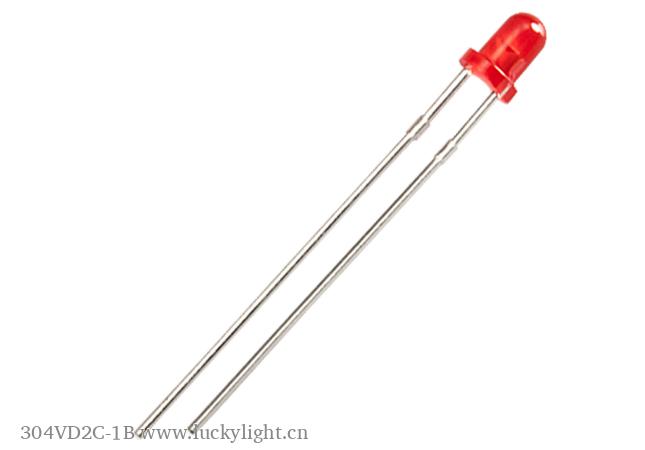

| 30xxx2C Series | 304VD2C-1B |
|
Super Bright Red | Red Diffused | 3 | 460 | 624 | 60 | Download | |
| 30xxx2C Series | 304PGD2C-G5-2B |
|
Pure Green | Green Diffused | 3 | 5000 | 525 | 60 | Download | |

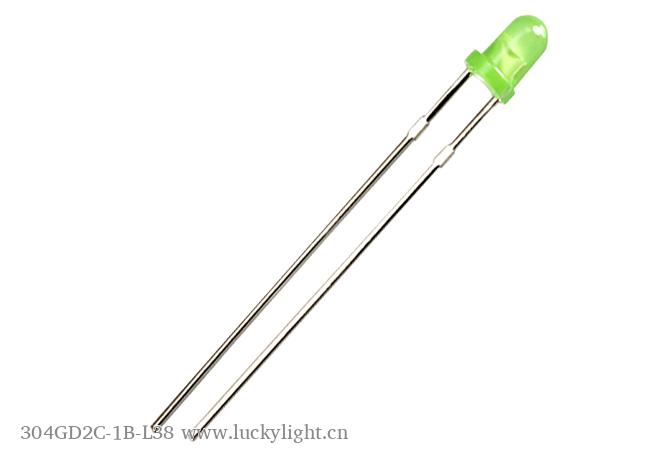

| 30xxx2C Series | 304GD2C-1B-L38 |
|
Super Yellow Green | Green Diffused | 3 | 120 | 571 | 60 | Download | |
| 30xxx2C Series | 304GD2C-1B |
|
Super Yellow Green | Green Diffused | 3 | 120 | 571 | 60 | Download | |
| 30xxx2C Series | 304BD2C-B4-2B |
|
Blue | Blue Diffused | 3 | 1300 | 470 | 60 | Download | |
| 30xxx2C Series | 304AD2C-1B-L38 |
|
Super Bright Orange | Orange Diffused | 3 | 460 | 605 | 60 | Download | |
| 30xxx2C Series | 304AD2C-1B |
|
Super Bright Orange | Orange Diffused | 3 | 460 | 605 | 60 | Download | |
| 30xxx2J Series | 304AD2J-1B |
|
Super Bright Orange | Orange Diffused | 3 | 270 | 605 | 60 | Download | |
| 30xxx2J Series | 304AC2J-2BD |
|
Super Bright Orange | Water Clear | 3 | 1700 | 605 | 30 | Download | |
| 30xxx2J Series | 304YD2J-1B |
|
Super Bright Yellow | Yellow Diffused | 3 | 270 | 590 | 60 | Download | |
| 30xxx2J Series | 304YC2J-4CD |
|
Super Bright Yellow | Water Clear | 3 | 2200 | 590 | 30 | Download | |
| 30xxx2J Series | 304YC2J-2BD |
|
Super Bright Yellow | Water Clear | 3 | 1000 | 590 | 30 | Download | |

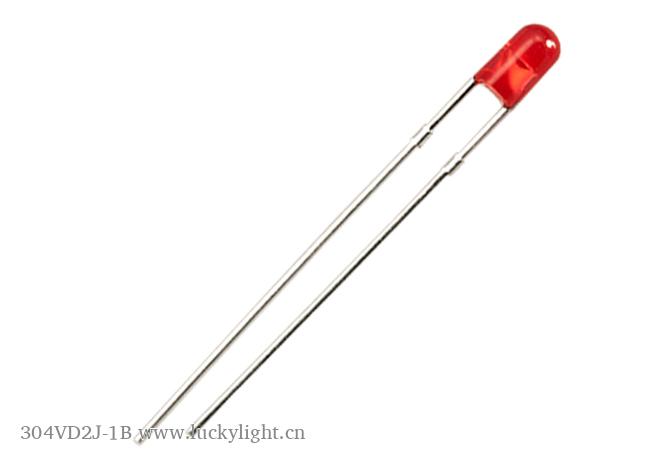

| 30xxx2J Series | 304VD2J-1B |
|
Super Bright Red | Red Diffused | 3 | 600 | 624 | 60 | Download | |
| 30xxx2J Series | 304VC2J-4CD |
|
Super Bright Red | Water Clear | 3 | 2900 | 624 | 30 | Download | |

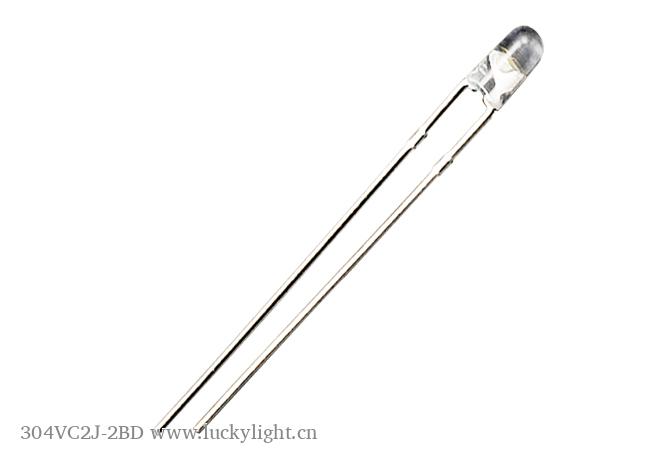

| 30xxx2J Series | 304VC2J-2BD |
|
Super Bright Red | Water Clear | 3 | 1000 | 624 | 30 | Download | |
| 30xxx2J Series | 304PGD2J-G5-2B |
|
Pure Green | Green Diffused | 3 | 3800 | 525 | 60 | Download | |
| 30xxx2J Series | 304PGC2J-G5-2BD |
|
Pure Green | Water Clear | 3 | 18000 | 525 | 25 | Download | |
| 30xxx2J Series | 304GD2J-1B |
|
Super Yellow Green | Green Diffused | 3 | 160 | 571 | 60 | Download | |
| 30xxx2J Series | 304BD2J-B4-2B |
|
Blue | Blue Diffused | 3 | 1000 | 470 | 60 | Download | |
| 30xxx2J Series | 304BC2J-B4-2BD |
|
Blue | Water Clear | 3 | 5000 | 470 | 25 | Download | |
| 30xxx4B Series | 304UVAC4B-Q6D |
|
UV | Water Clear | 3 | 90 | λp-400 | 25 | Download | |
| 30xxx4B Series | 304UVAC4B-Q5D |
|
UV | Water Clear | 3 | 90 | λp-395 | 25 | Download | |
| 30xxx4B Series | 304YC4B-4CD |
|
Super Bright Yellow | Water Clear | 3 | 2900 | 590 | 30 | Download | |
| 30xxx4B Series | 304YC4B-2BD |
|
Super Bright Yellow | Water Clear | 3 | 1000 | 590 | 30 | Download | |
| 30xxx4B Series | 304VC4B-4CD |
|
Super Bright Red | Water Clear | 3 | 2200 | 624 | 30 | Download | |
| 30xxx4B Series | 304VC4B-2BD |
|
Super Bright Red | Water Clear | 3 | 1000 | 624 | 30 | Download | |
| 30xxx4B Series | 304PGC4B-G5-2BD |
|
Pure Green | Water Clear | 3 | 18000 | 525 | 30 | Download | |
| 30xxx4B Series | 304GC4B-1BD |
|
Super Yellow Green | Water Clear | 3 | 270 | 571 | 30 | Download | |
| 30xxx4B Series | 304BC4B-B4-2BD |
|
Blue | Water Clear | 3 | 3800 | 470 | 30 | Download | |
| 30xxx4B Series | 304AC4B-4CD |
|
Super Bright Orange | Water Clear | 3 | 3800 | 605 | 30 | Download | |
| 30xxx4B Series | 304AC4B-2BD |
|
Super Bright Orange | Water Clear | 3 | 1000 | 605 | 30 | Download |
