Luckylight offers a full range of surface mount 7-segment displays ranging from standard brightness displays to ultra bright displays. Single Digit, Dual Digit, Three Digit and Four displays are available in assorted character heights and colors. Compared with through-hole 7-segment displays, the surface mount 7-segment displays feature lower power requirements, high light output, less space and more design flexibility.

Luckylight’s SMD 7-segment LED displays are used in a wide variety of end products including test and measurement equipment, point-of-sale terminals, telecom systems, office equipment, consumer electronics, and medical equipment. Size options include 5.08mm, 7mm, 10mm, 14.2mm, 20.32mm and 25.4mm, and color choices include green, red, yellow, white, blue and orange.

The highly integrated customization capability of Luckylight SMD 7-segment displays also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.

Luckylight offers many kinds of SMD 7-segment LED displays which are categorized by Digit Number, Polarity, Face Color and Emitting Color. The parametric filters (▽) on our website can help refine your search results depending on the required specifications.

Select Product Line

Part Number View Picture Emitting Color

Face Color

Digit Height

Polarity Digit Number

λd(nm)
CIE(x,y)

DataSheet
KW2-S561xxB Series KW2-S561CWB
White
Black 14.2mm (0.56") Common Cathode Dual Digit x=0.30, y=0.31 Download
KW2-S561xxB Series KW2-S561CVB
Red
Black 14.2mm (0.56") Common Cathode Dual Digit 624 Download
KW2-S561xxB Series KW2-S561CGB
Yellow Green
Black 14.2mm (0.56") Common Cathode Dual Digit 572 Download

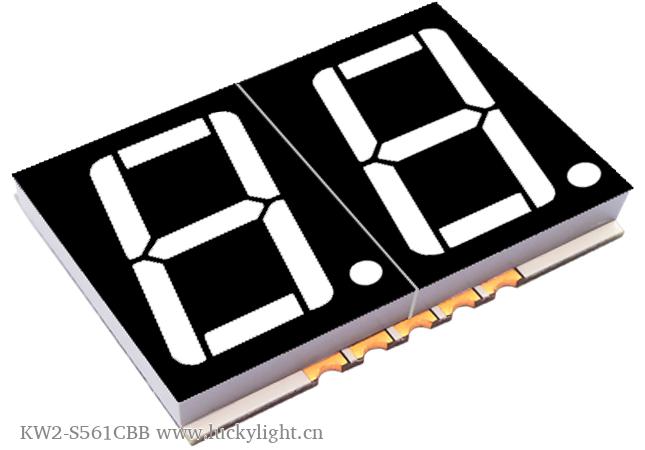

KW2-S561xxB Series KW2-S561CBB
Blue
Black 14.2mm (0.56") Common Cathode Dual Digit 470 Download
KW2-S561xxB Series KW2-S561CAB
Orange
Black 14.2mm (0.56") Common Cathode Dual Digit 605 Download
KW2-S561xxB Series KW2-S561AWB
White
Black 14.2mm (0.56") Common Anode Dual Digit x=0.30, y=0.31 Download
KW2-S561xxB Series KW2-S561AVB
Red
Black 14.2mm (0.56") Common Anode Dual Digit 624 Download
KW2-S561xxB Series KW2-S561ABB
Blue
Black 14.2mm (0.56") Common Anode Dual Digit 470 Download
KW2-S561xxB Series KW2-S561AGB
Yellow Green
Black 14.2mm (0.56") Common Anode Dual Digit 572 Download
KW2-S561xxB Series KW2-S561AAB
Orange
Black 14.2mm (0.56") Common Anode Dual Digit 605 Download
Show More Results
