Luckylight’s Through-hole white LEDs provide superior light output for excellent readability in sunlight for use in outdoor signal and sign applications. They are also suitable for all applications requiring backlighting and commercial lighting and more.
Through-hole white LEDs are offered in a variety of packages such as 3mm, 5mm, 8mm, 10mm, Cylindrical and Rectangular type options, and color temperature ranges choice including cool white, neutral white and warm white, and even special color temperature ranges customization.
These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Both diffused and water clear are balanced to yield superior light output. Several intensity choices are available in different packages for increasing design flexibility.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color
|
Size(mm)
|
Luminous Intensity Typ.(mcd) |
Chromaticity
Coordinate x
y
|
Viewing Angle 2 θ ½ |
DataSheet | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 23xxx2Q Series (White) | 234WC2Q-W2-3P |
|
Cool White | Water Clear | 2 × 3 | 1300 | 0.28 | 0.28 | 130 | Download | |
| 23xxx2Q Series (White) | 234WC2Q-W5-3P |
|
Neutral White | Water Clear | 2 × 3 | 1300 | 0.33 | 0.32 | 130 | Download | |
| 23xxx2Q Series (White) | 234WC2Q-W6-3P |
|
Warm White | Water Clear | 2 × 3 | 1300 | 0.43 | 0.40 | 130 | Download | |
| 54xxx2I Series (White) | 544WC2I-W2-3P-T |
|
Cool White | Water Clear | 5.2 × 3.8 | 6500 | 0.28 | 0.28 | 110/40 | Download | |
| 54xxx2I Series (White) | 544WM2I-W2-3P-T |
|
Cool White | White Diffused | 5.2 × 3.8 | 3800 | 0.28 | 0.28 | 110/40 | Download | |

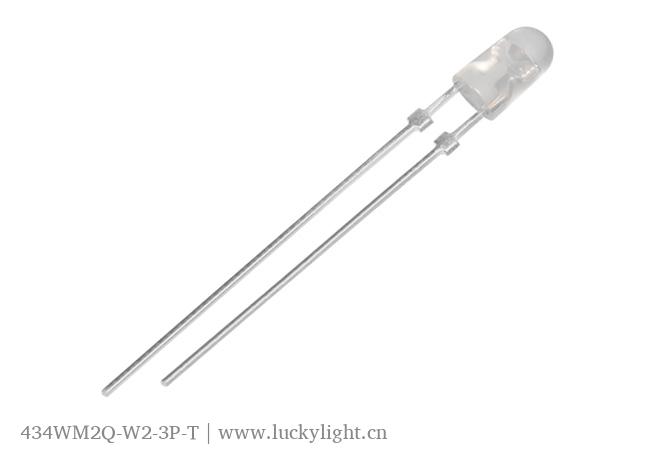

| 43xxx2Q Series (White) | 434WM2Q-W2-3P-T |
|
Cool White | White Diffused | 3.9 × 3.2 | 3800 | 0.28 | 0.28 | 110/40 | Download | |

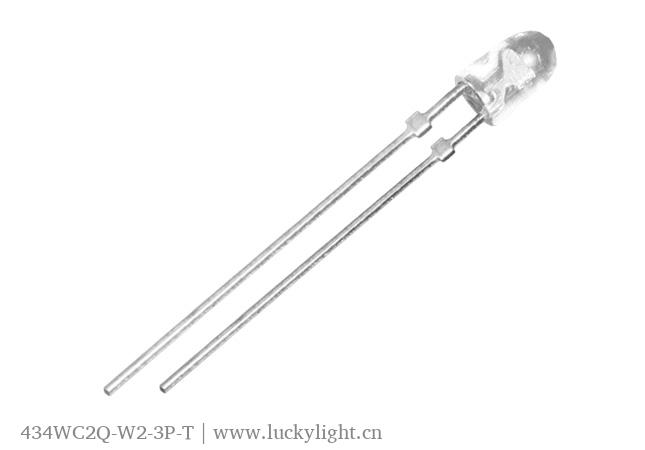

| 43xxx2Q Series (White) | 434WC2Q-W2-3P-T |
|
Cool White | Water Clear | 3.9 × 3.2 | 4500 | 0.28 | 0.28 | 110/40 | Download | |
| 50xxx2Z Series (White) | 504WC2Z-W2-3PF |
|
Cool White | Water Clear | 5 | 5000 | 0.28 | 0.28 | 60 | Download | |

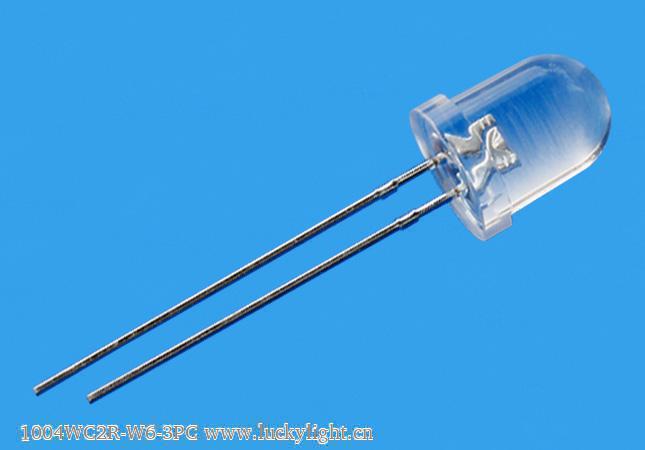

| 100xxx2R Series (White) | 1004WC2R-W6-3PC |
|
Warm White | Water Clear | 10 | 23000 | 0.43 | 0.40 | 15 | Download | |

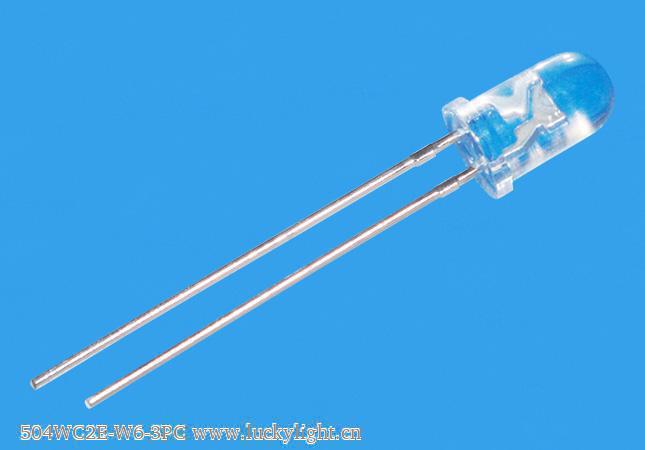

| 50xxx2E Series (White) | 504WC2E-W6-3PC |
|
Warm White | Water Clear | 5 | 23000 | 0.43 | 0.40 | 15 | Download | |
| 50xxx2V Series (White) | 504WC2V-W5-3PD |
|
Neutral White | Water Clear | 5 | 8500 | 0.33 | 0.32 | 30 | Download | |
| 50xxx2V Series (White) | 504WC2V-W6-3PD |
|
Warm White | Water Clear | 5 | 8500 | 0.43 | 0.40 | 30 | Download | |
| 50xxx2V Series (White) | 504WC2V-W2-3PD |
|
Cool White | Water Clear | 5 | 8500 | 0.28 | 0.28 | 30 | Download | |

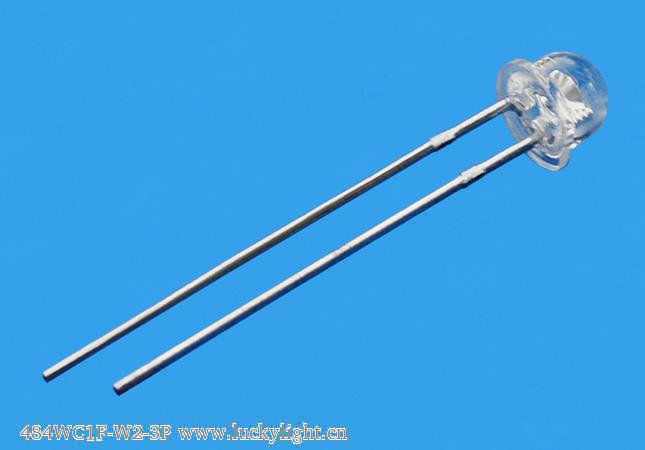

| 48xxx1F Series (White) | 484WC1F-W2-3P |
|
Cool White | Water Clear | 4.8 | 2200 | 0.28 | 0.28 | 90 | Download | |
| 48xxx1F Series (White) | 484WC1F-W6-3P |
|
Warm White | Water Clear | 4.8 | 2200 | 0.43 | 0.40 | 90 | Download | |
| 48xxx1F Series (White) | 484WC1F-W5-3P |
|
Neutral White | Water Clear | 4.8 | 2200 | 0.33 | 0.32 | 90 | Download | |
| 48xxx1C Series (White) | 484WC1C-W6-3P |
|
Warm White | Water Clear | 4.8 | 2200 | 0.43 | 0.40 | 100 | Download | |
| 48xxx1C Series (White) | 484WC1C-W5-3P |
|
Neutral White | Water Clear | 4.8 | 2200 | 0.33 | 0.32 | 100 | Download | |
| 48xxx1C Series (White) | 484WC1C-W2-3P |
|
Cool White | Water Clear | 4.8 | 2200 | 0.28 | 0.28 | 100 | Download | |

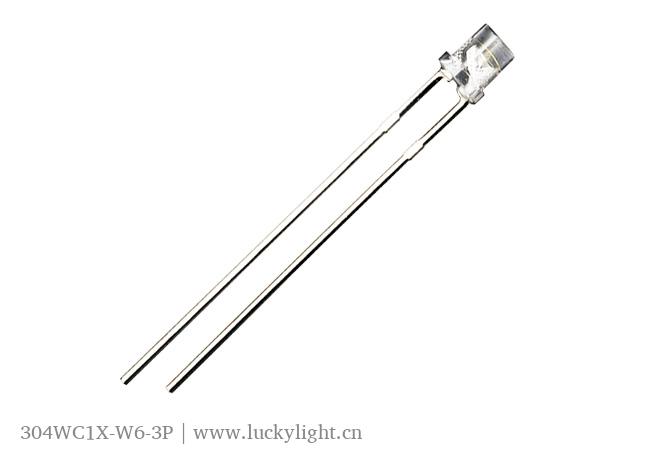

| 30xxx1X Series (White) | 304WC1X-W6-3P |
|
Warm White | Water Clear | 3 | 1300 | 0.43 | 0.40 | 100 | Download | |
| 30xxx1X Series (White) | 304WC1X-W2-3P |
|
Cool White | Water Clear | 3 | 1300 | 0.28 | 0.28 | 100 | Download | |
| 30xxx1X Series (White) | 304WC1X-W5-3P |
|
Neutral White | Water Clear | 3 | 1300 | 0.33 | 0.32 | 100 | Download | |
| 50xxx2Z Series (White) | 504WC2Z-W6-3PF |
|
Warm White | Water Clear | 5 | 5000 | 0.43 | 0.40 | 60 | Download | |
| 50xxx2Z Series (White) | 504WC2Z-W5-3PF |
|
Neutral White | Water Clear | 5 | 5000 | 0.33 | 0.32 | 60 | Download | |
| 50xxx1E Series (White) | 504WC1E-W2-3P |
|
Cool White | Water Clear | 5 | 1700 | 0.28 | 0.28 | 100 | Download | |
| 50xxx1E Series (White) | 504WC1E-W5-3P |
|
Neutral White | Water Clear | 5 | 1700 | 0.33 | 0.32 | 100 | Download | |
| 50xxx1E Series (White) | 504WC1E-W6-3P |
|
Warm White | Water Clear | 5 | 1700 | 0.43 | 0.40 | 100 | Download | |

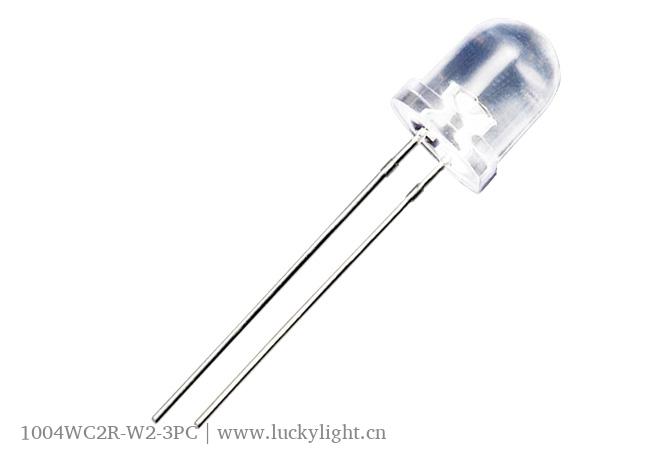

| 100xxx2R Series (White) | 1004WC2R-W2-3PC |
|
Cool White | Water Clear | 10 | 23000 | 0.28 | 0.28 | 15 | Download | |
| 100xxx2R Series (White) | 1004WC2R-W5-3PC |
|
Neutral White | Water Clear | 10 | 23000 | 0.33 | 0.32 | 15 | Download | |
| 50xxx2E Series (White) | 504WC2E-W2-3PC |
|
Cool White | Water Clear | 5 | 23000 | 0.28 | 0.28 | 15 | Download | |
| 50xxx2E Series (White) | 504WC2E-W5-3PC |
|
Neutral White | Water Clear | 5 | 23000 | 0.33 | 0.32 | 15 | Download | |
| 80xxx2C Series (White) | 804WC2C-W6-3PD |
|
Warm White | Water Clear | 8 | 8500 | 0.43 | 0.40 | 30 | Download | |
| 80xxx2C Series (White) | 804WC2C-W5-3PD |
|
Neutral White | Water Clear | 8 | 8500 | 0.33 | 0.32 | 30 | Download | |

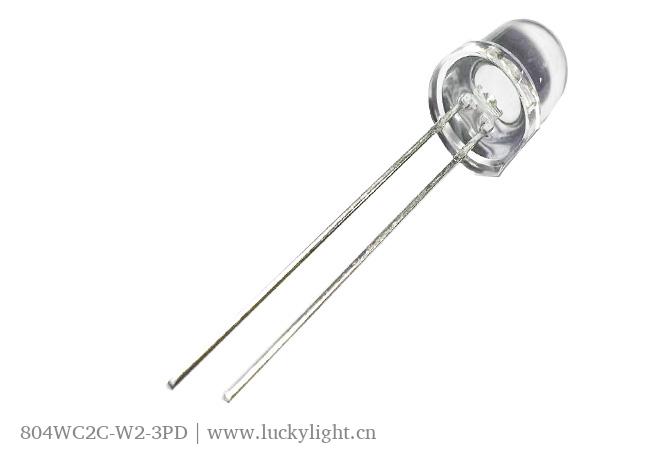

| 80xxx2C Series (White) | 804WC2C-W2-3PD |
|
Cool White | Water Clear | 8 | 8500 | 0.28 | 0.28 | 30 | Download | |
| 30xxx4B Series (White) | 304WC4B-W2-3PD |
|
Cool White | Water Clear | 3 | 8500 | 0.28 | 0.28 | 30 | Download | |
| 30xxx4B Series (White) | 304WC4B-W5-3PD |
|
Neutral White | Water Clear | 3 | 8500 | 0.33 | 0.32 | 30 | Download | |
| 30xxx4B Series (White) | 304WC4B-W6-3PD |
|
Warm White | Water Clear | 3 | 8500 | 0.43 | 0.40 | 30 | Download | |
| 30xxx2J Series (White) | 304WC2J-W2-3PD |
|
Cool White | Water Clear | 3 | 8500 | 0.28 | 0.28 | 30 | Download | |
| 30xxx2J Series (White) | 304WC2J-W5-3PD |
|
Neutral White | Water Clear | 3 | 8500 | 0.33 | 0.32 | 30 | Download | |
| 30xxx2J Series (White) | 304WC2J-W6-3PD |
|
Warm White | Water Clear | 3 | 8500 | 0.43 | 0.40 | 30 | Download |
