Through-hole Tower LEDs are suitable for all applications requiring instruments, switches, icon backlighting, and general status indication. There are 3 types of technology-based LEDs lamps. The chips with GaP technology are for low to moderate light output requirements, and the ones with AllnGaP and InGaN technologies are for high brightness light output.

Through-hole Tower LEDs are offered in a variety of packages such as 1.8mm Round, 2mm Flat Top, 2.4mm Flat Top, with integrated built-in resistor or low current options, and color choices include green, red, yellow, white, blue and orange.

These devices are molded from advanced optical grade epoxy, which provide superior high temperature performance and excellent moisture resistance. Diffused, color transparent and optical design are balanced to yield superior light output. Several intensity choices are available in each color for increasing design flexibility.

Select Product Line

Part Number View Picture Emitting Color

Resin Color

Size(mm)

Luminous
Intensity
Typ.(mcd)
Wavelength
λd(nm)

Viewing Angle
2 θ ½

DataSheet

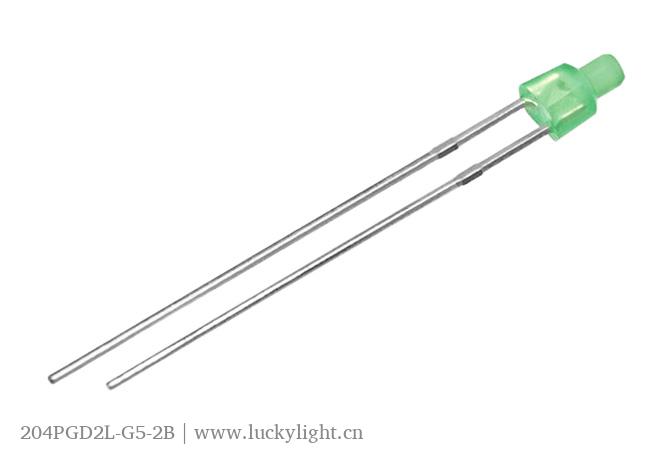

20xxx2L Series 204PGD2L-G5-2B
Pure Green
Green Diffused 2 780 525 120 Download

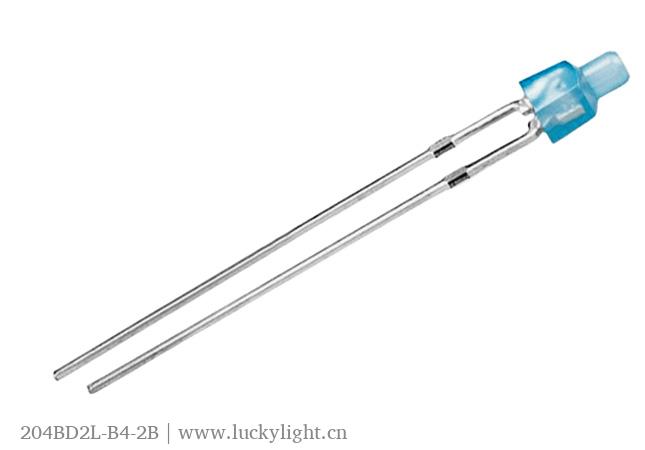

20xxx2L Series 204BD2L-B4-2B
Blue
Blue Diffused 2 210 470 120 Download

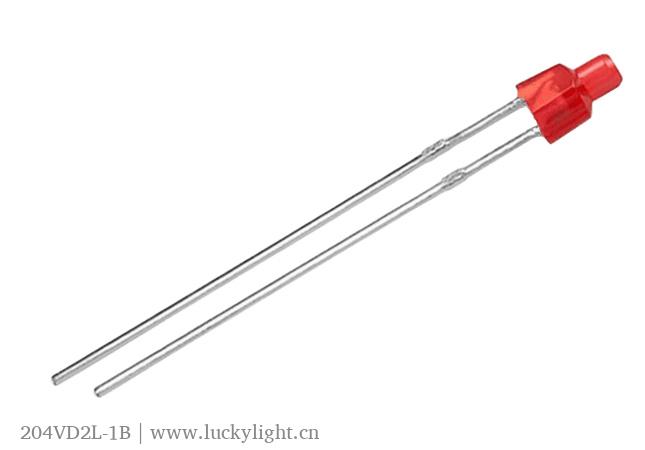

20xxx2L Series 204VD2L-1B
Super Bright Red
Red Diffused 2 120 624 150 Download

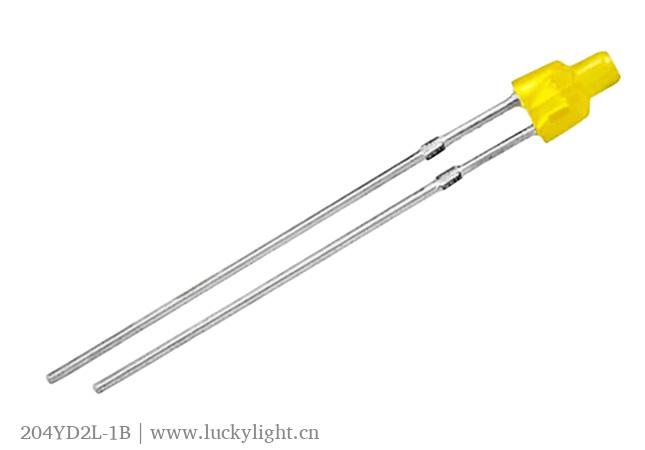

20xxx2L Series 204YD2L-1B
Super Bright Yellow
Yellow Diffused 2 70 590 150 Download

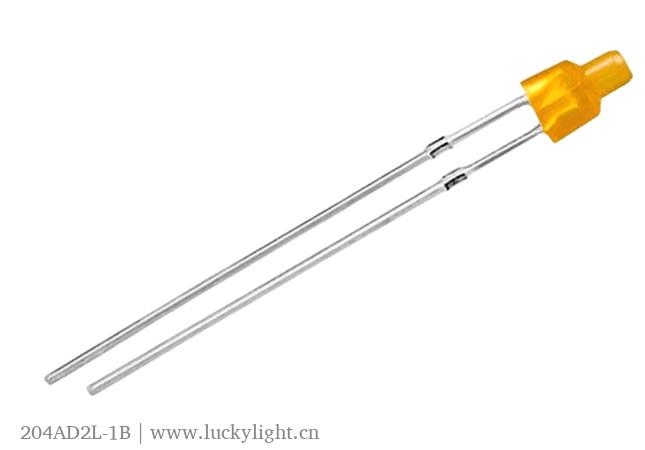

20xxx2L Series 204AD2L-1B
Super Bright Orange
Orange Diffused 2 90 605 150 Download

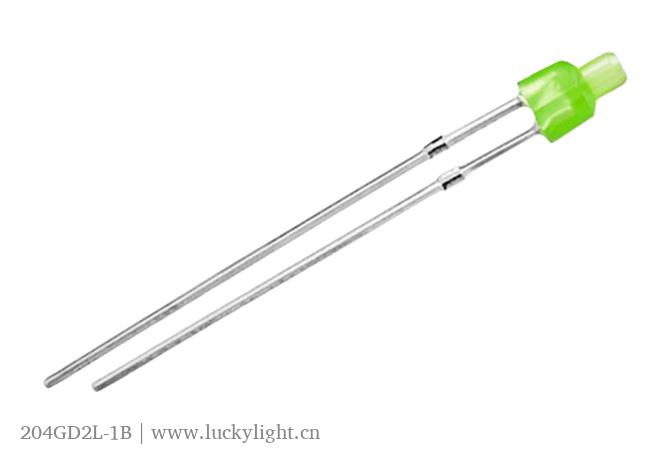

20xxx2L Series 204GD2L-1B
Super Yellow Green
Green Diffused 2 30 571 150 Download

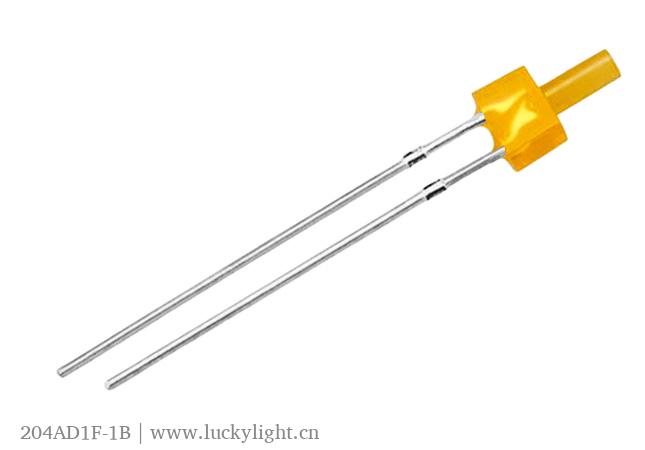

20xxx1F Series 204AD1F-1B
Super Bright Orange
Orange Diffused 2 45 605 130 Download

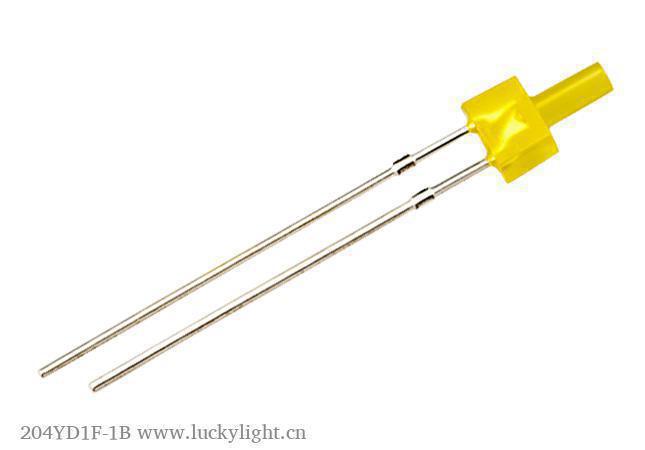

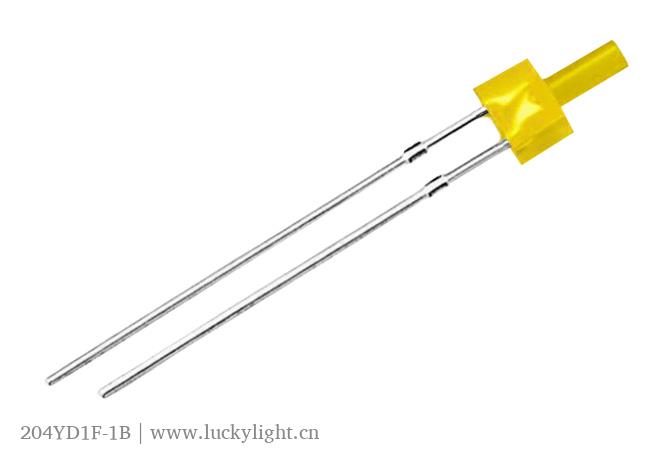

20xxx1F Series 204YD1F-1B
Super Bright Yellow
Yellow Diffused 2 45 590 130 Download

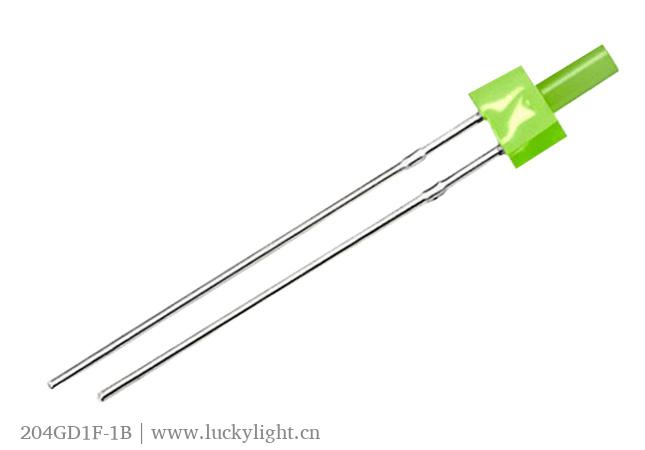

20xxx1F Series 204GD1F-1B
Super Yellow Green
Green Diffused 2 20 571 130 Download

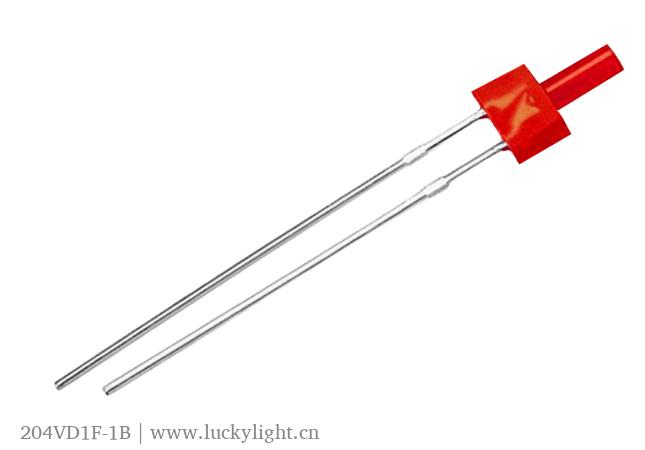

20xxx1F Series 204VD1F-1B
Super Bright Red
Red Diffused 2 70 624 130 Download

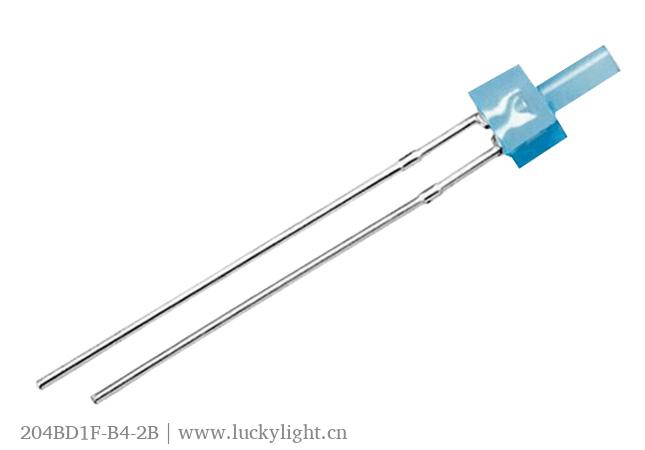

20xxx1F Series 204BD1F-B4-2B
Blue
Blue Diffused 2 270 470 130 Download

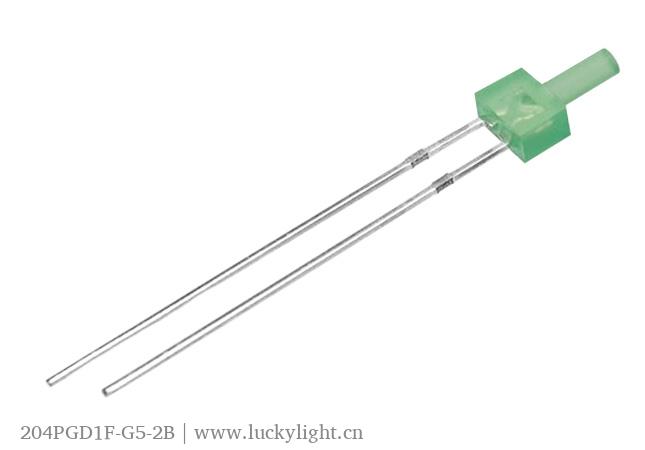

20xxx1F Series 204PGD1F-G5-2B
Pure Green
Green Diffused 2 780 525 130 Download

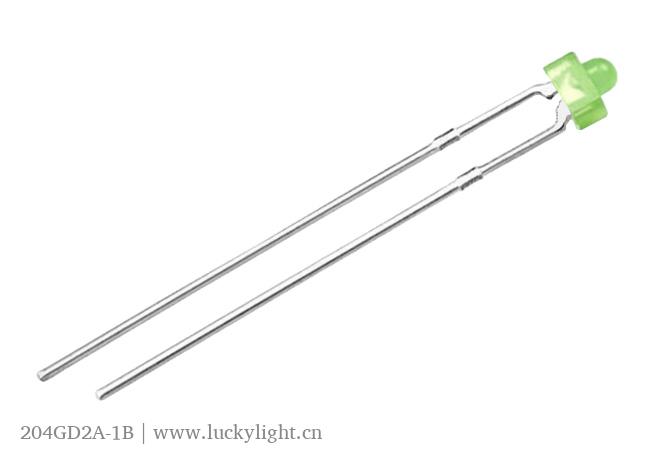

20xxx2A Series 204GD2A-1B
Super Yellow Green
Green Diffused 2 160 571 60 Download

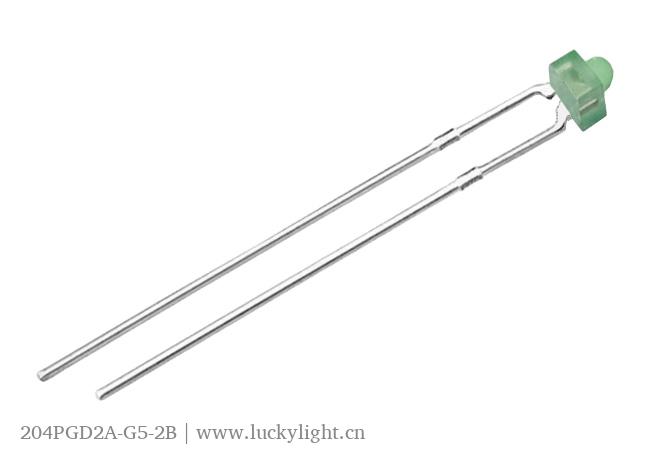

20xxx2A Series 204PGD2A-G5-2B
Pure Green
Green Diffused 2 2200 525 60 Download
20xxx2A Series 204AD2A-1B
Super Bright Orange
Orange Diffused 2 350 605 60 Download

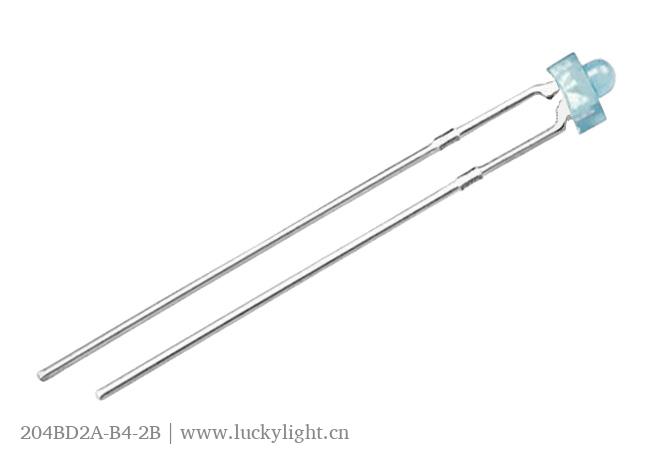

20xxx2A Series 204BD2A-B4-2B
Blue
Blue Diffused 2 780 470 60 Download

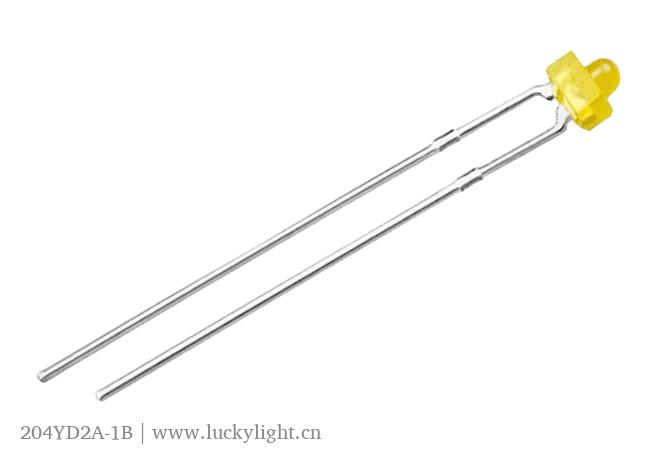

20xxx2A Series 204YD2A-1B
Super Bright Yellow
Yellow Diffused 2 270 590 60 Download

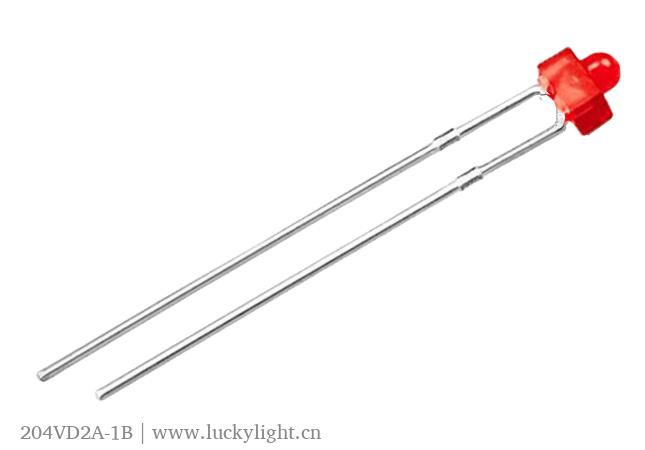

20xxx2A Series 204VD2A-1B
Super Bright Red
Red Diffused 2 600 624 60 Download
Show More Results
