Through hole Super Flux LEDs (Piranha LEDs) are rectangular packages of LEDs with 4 pins. These devices are offered in 3mm, 5mm and Flat Lens packages, and color choices include green, red, yellow, white, blue, orange and RGB.
Through hole Super Flux LEDs are suitable for all applications requiring automotive, backlight, signal and specialty lighting. 5mm Super Flux LEDs are the brightest for their size. Each has a large lens to produces a wide view angle. This is great for custom installations which an extremely bright and wide view angle light is needed and using the 5mm Super Flux LEDs will give you very good results and offers a unique lighting approach.
Super Flux LEDs have the lowest thermal resistance comparing with other through-hole LEDs, and this allows Super Flux LEDs to work under a relatively wide range of temperatures with higher input power.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color
|
Size(mm)
|
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| U47xx2C Series | U47W2C-W2-1B |
|
Cool White | Water Clear | Φ3 × 1.50 | 4000 |
|
40 | Download | |
| U47xx2C Series | U47W2C-W6-1E |
|
Warm White | Water Clear | Φ3 × 1.50 | 4000 |
|
40 | Download | |
| U47xx2C Series | U47PG2C-G5-2C |
|
Pure Green | Water Clear | Φ3 × 1.50 | 8000 | 525 | 40 | Download | |
| U47xx2C Series | U47B2C-B4-1G |
|
Blue | Water Clear | Φ3 × 1.50 | 2500 | 470 | 40 | Download | |

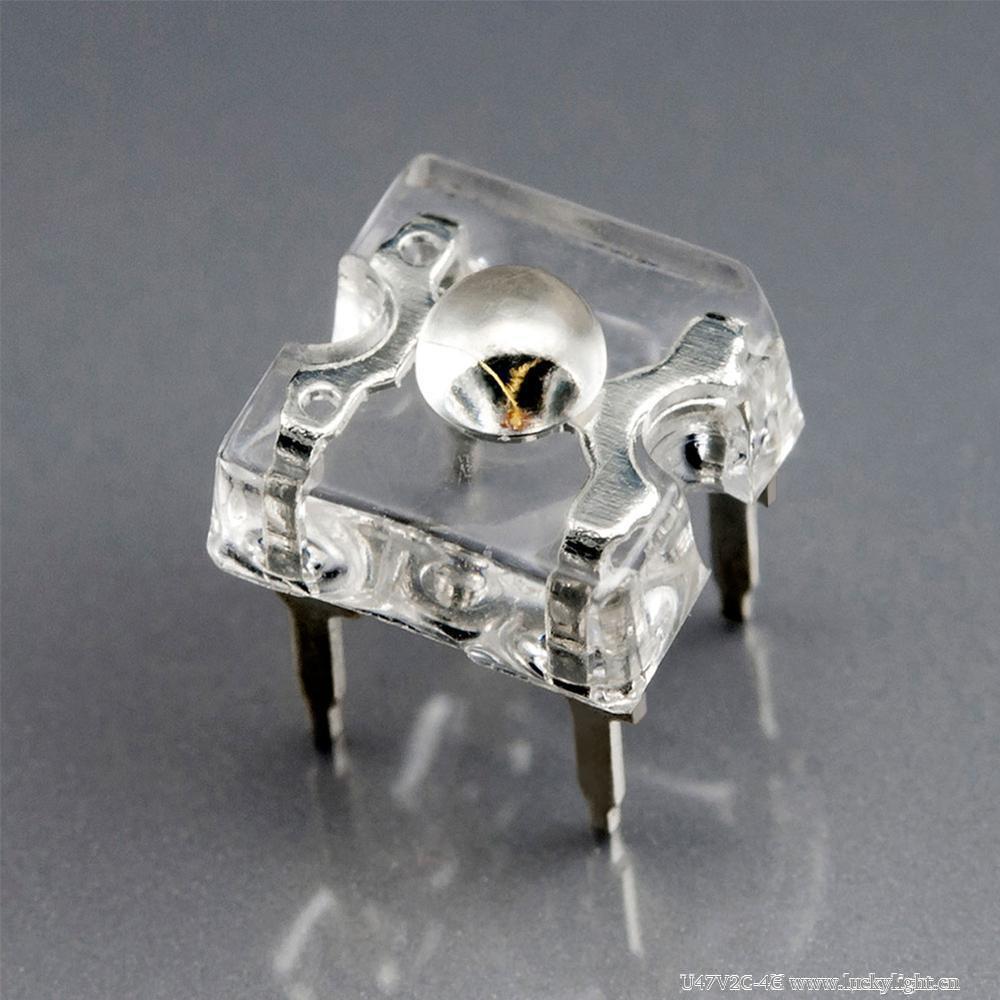

| U47xx2C Series | U47V2C-4C |
|
Super Bright Red | Water Clear | Φ3 × 1.50 | 2500 | 624 | 40 | Download | |
| U47xx2C Series | U47Y2C-4C |
|
Super Bright Yellow | Water Clear | Φ3 × 1.50 | 2500 | 590 | 40 | Download | |
| U47xx1C Series | U47W1C-W2-3C |
|
Cool White | Water Clear | Φ3 × 1.90 | 6000 |
|
35 | Download | |
| U47xx1C Series | U47W1C-W6-3C |
|
Warm White | Water Clear | Φ3 × 1.90 | 6000 |
|
35 | Download | |
| U47xx1C Series | U47B1C-B4-1G |
|
Blue | Water Clear | Φ3 × 1.90 | 3000 | 470 | 35 | Download | |
| U47xx1C Series | U47Y1C-4C |
|
Super Bright Yellow | Water Clear | Φ3 × 1.90 | 2500 | 590 | 35 | Download | |
| U47xx1C Series | U47V1C-4C |
|
Super Bright Red | Water Clear | Φ3 × 1.90 | 2500 | 624 | 35 | Download | |
| U47xx1C Series | U47PG1C-G5-2C |
|
Pure Green | Water Clear | Φ3 × 1.90 | 10000 | 525 | 35 | Download | |
| U48RGB3C Series | U48RGB3C-001-SL |
|
|
Water Clear | Φ5 × 2.50 |
|
|
50 | Download | |
| U48xx3C Series | U48V3C-4C |
|
Super Bright Red | Water Clear | Φ5 × 2.50 | 1500 | 624 | 50 | Download | |
| U48xx3C Series | U48PG3C-G5-2C |
|
Pure Green | Water Clear | Φ5 × 2.50 | 10000 | 525 | 50 | Download | |
| U48xx3C Series | U48B3C-B4-1G |
|
Blue | Water Clear | Φ5 × 2.50 | 2000 | 470 | 50 | Download | |
| U48xx3C Series | U48Y3C-4C |
|
Super Bright Yellow | Water Clear | Φ5 × 2.50 | 1500 | 590 | 50 | Download | |
| U48xx3C Series | U48W3C-W2-3C |
|
Cool White | Water Clear | Φ5 × 2.50 | 6000 |
|
50 | Download | |
| U48xx3C Series | U48W3C-W6-3C |
|
Warm White | Water Clear | Φ5 × 2.50 | 5000 |
|
50 | Download |
