Circuit Board Indicator LEDs, or Assembly LED, is a black plastic housing (Holder) which mates with Luckylight LED lamps. Circuit Board Indicator is available in a wide variety of packages, including top view (Spacer) or right angle and horizontal or vertical arrays which is stackable and easy to assembly.
Circuit Board Indicator products include 2mm, 3mm, 5mm, rectangular type. Various array configurations available include backlighting, single-level, bi-level, tri-level, quad-level, dual-block, tri-block and quad-block versions in single color and bi-color, and color choices include green, red, yellow, white, blue and orange. Custom color combinations are available.
Assembly LEDs is well-suited for a broad range of applications including automation and industrial control, infrastructure, IoT, medical, switchers, storage servers and telecommunications and more.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
LED Type (mm) |
Array Configuration |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|
| H23K_4xx Series | H23K-4VD |
|
Super Bright Red | 2*3 | Quad-level | 624 | 130 | Download | |
| H23K_4xx Series | H23K-4GD |
|
Super Yellow Green | 2*3 | Quad-level | 571 | 130 | Download | |
| H23K_4xx Series | H23K-4YD |
|
Super Bright Yellow | 2*3 | Quad-level | 590 | 130 | Download | |
| H23K_4xx Series | H23K-4AD |
|
Super Bright Orange | 2*3 | Quad-level | 605 | 130 | Download | |
| H23CB_3xx Series | H23CB-3YD |
|
Super Bright Yellow | 2*5 | Tri-block | 590 | 180 | Download | |
| H23CB_3xx Series | H23CB-3VD |
|
Super Bright Red | 2*5 | Tri-block | 624 | 180 | Download | |
| H23CB_3xx Series | H23CB-3GD |
|
Super Yellow Green | 2*5 | Tri-block | 571 | 180 | Download | |
| H23CB_3xx Series | H23CB-3AD |
|
Super Bright Orange | 2*5 | Tri-block | 605 | 180 | Download | |
| H23CB_4xx Series | H23CB-4VD |
|
Super Bright Red | 2*5 | Quad-block | 624 | 180 | Download | |
| H23CB_4xx Series | H23CB-4YD |
|
Super Bright Yellow | 2*5 | Quad-block | 590 | 180 | Download | |
| H23CB_4xx Series | H23CB-4AD |
|
Super Bright Orange | 2*5 | Quad-block | 605 | 180 | Download | |
| H23CB_4xx Series | H23CB-4GD |
|
Super Yellow Green | 2*5 | Quad-block | 571 | 180 | Download | |
| H23CB_5xx Series | H23CB-5YD |
|
Super Bright Yellow | 2*5 | Five-block | 590 | 180 | Download | |
| H23CB_5xx Series | H23CB-5VD |
|
Super Bright Red | 2*5 | Five-block | 624 | 180 | Download | |
| H23CB_5xx Series | H23CB-5GD |
|
Super Yellow Green | 2*5 | Five-block | 571 | 180 | Download | |
| H23CB_5xx Series | H23CB-5AD |
|
Super Bright Orange | 2*5 | Five-block | 605 | 180 | Download | |
| H30Fxx Series | H30F-2GD-RS |
|
Super Yellow Green | 3 | Bi-level | 571 | 80 | Download | |
| H30D_4xx Series | H30D-4VD-RS |
|
Super Bright Red | 3 | Quad-level | 624 | 80 | Download | |
| H30D_4xx Series | H30D-4YD-RS |
|
Super Bright Yellow | 3 | Quad-level | 590 | 80 | Download | |
| H30D_4xx Series | H30D-4AD-RS |
|
Super Bright Orange | 3 | Quad-level | 605 | 80 | Download | |
| H30D_4xx Series | H30D-4GD-RS |
|
Super Yellow Green | 3 | Quad-level | 571 | 80 | Download | |
| H30D_3xx Series | H30D-3VD-RS |
|
Super Bright Red | 3 | Tri-level | 624 | 80 | Download | |
| H30D_3xx Series | H30D-3AD-RS |
|
Super Bright Orange | 3 | Tri-level | 605 | 80 | Download | |
| H30D_3xx Series | H30D-3YD-RS |
|
Super Bright Yellow | 3 | Tri-level | 590 | 80 | Download | |
| H30D_3xx Series | H30D-3GD-RS |
|
Super Yellow Green | 3 | Tri-level | 571 | 80 | Download | |
| H50F_2xx Series | H50F-2GD-RS |
|
Super Yellow Green | 5 | Bi-level | 571 | 60 | Download | |
| H50F_2xx Series | H50F-2AD-RS |
|
Super Bright Orange | 5 | Bi-level | 605 | 60 | Download | |
| H50F_2xx Series | H50F-2VD-RS |
|
Super Bright Red | 5 | Bi-level | 624 | 60 | Download | |
| H50F_2xx Series | H50F-2BD-RS |
|
Blue | 5 | Bi-level | 470 | 60 | Download | |
| H50F_2xx Series | H50F-2YD-RS |
|
Super Bright Yellow | 5 | Bi-level | 590 | 60 | Download | |
| H50Exx Series | H50E-1GYM |
|
|
5 | Single-level |
|
60 | Download | |
| H50Exx Series | H50E-1VYM |
|
|
5 | Single-level | 624/590 | 60 | Download | |
| H50Exx Series | H50E-1VGM |
|
|
5 | Single-level |
|
60 | Download | |
| H50Cxx Series | H50C-1VD |
|
Super Bright Red | 5 | Single-level | 624 | 60 | Download | |
| H50Cxx Series | H50C-1AD |
|
Super Bright Orange | 5 | Single-level | 605 | 60 | Download | |
| H50Cxx Series | H50C-1GD |
|
Super Yellow Green | 5 | Single-level | 571 | 60 | Download | |
| H50Cxx Series | H50C-1YD |
|
Super Bright Yellow | 5 | Single-level | 590 | 60 | Download | |
| H50Cxx Series | H50C-1BD |
|
Blue | 5 | Single-level | 470 | 60 | Download | |

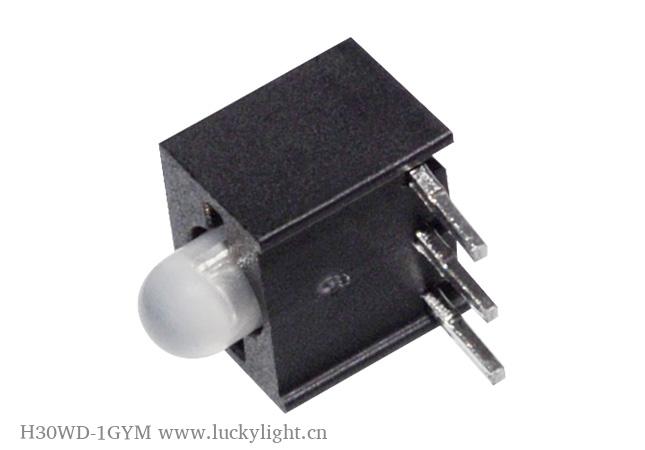

| H30WDxx Series | H30WD-1GYM |
|
|
3 | Single-level |
|
80 | Download | |
| H30WDxx Series | H30WD-1VYM |
|
|
3 | Single-level |
|
80 | Download | |
| H30WDxx Series | H30WD-1VGM |
|
|
3 | Single-level |
|
80 | Download | |
| H30Fxx Series | H30F-2AD-RS |
|
Super Bright Orange | 3 | Bi-level | 605 | 80 | Download | |
| H30Fxx Series | H30F-2BD-RS |
|
Blue | 3 | Bi-level | 470 | 60 | Download | |
| H30Fxx Series | H30F-2VD-RS |
|
Super Bright Red | 3 | Bi-level | 624 | 80 | Download | |
| H30Fxx Series | H30F-2YD-RS |
|
Super Bright Yellow | 3 | Bi-level | 590 | 80 | Download | |
| H30Exx Series | H30E-1GD |
|
Super Yellow Green | 3 | Single-level | 571 | 80 | Download | |
| H30Exx Series | H30E-1VD |
|
Super Bright Red | 3 | Single-level | 624 | 80 | Download | |
| H30Exx Series | H30E-1AD |
|
Super Bright Orange | 3 | Single-level | 605 | 80 | Download | |
| H30Exx Series | H30E-1BD |
|
Blue | 3 | Single-level | 470 | 60 | Download | |
| H30Exx Series | H30E-1YD |
|
Super Bright Yellow | 3 | Single-level | 590 | 80 | Download |
