Luckylight offers an extensive range of high quality White SMD LEDs which are small in size, high efficiency and low power consumption.
White SMD LED products are divided into Chip LEDs (PCB) and PLCC LEDs (reflector) configurations. These products use the industry standard footprint with top-mount, reverse-mount, and right angle-mount packaging options, and white ranges choice including cool white, neutral white and warm white, and color temperature range from 2600K to 11000K. Customized color temperature is available.
White SMD Chip LEDs products include 0402 series, 0603 series, 0805 series, 1206 series, Wing Lead series, etc. White SMD chip LEDs are used in a variety of applications including automotive interior and status indication, LCD and push button backlighting, white goods and appliances, industrial measurement and control systems, and for symbol lighting and status indication in computer peripherals and consumer goods.
White SMD PLCC LEDs products include V020 series, V335 series, R3014 series, R2835 series, R5730 series and R5050 series, etc. White SMD PLCC LEDs are perfectly suited for a variety of cross-industrial applications due to its small package outline, durability and superior brightness. Its versatility and reliability make it a preferred choice for automotive interior lighting specifically as instrumentation panel, central console and cabin backlighting. Besides, Top view PLCC LED combines performance and innovation effectively, making it a perfect choice for office automation, home applications, various decorations lighting, commercial lighting and industrial equipment application.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Size (mm) (length × width × height) |
Luminous Intensity Typ.(mcd) |
Chromaticity
Coordinate x
y
|
Viewing Angle 2 θ ½ |
DataSheet | |
|---|---|---|---|---|---|---|---|---|---|---|
| S162xx Series White | S162W-W2-1BJ |
|
Cool White | 1.00 × 0.50 × 0.40 | 700 | 0.28 | 0.29 | 120 | Download | |
| S170xx Series(White) | S170W-W2-1BG |
|
Cool White | 2.00 × 1.25 × 1.10 | 600 | 0.30 | 0.30 | 120 | Download | |
| S140xx Series(White) | S140W-W2-1CJ |
|
Cool White | 0.57 × 0.27 × 0.34 | 250 | 0.315 | 0.325 | 120 | Download | |
| S150xx Series(White) | S150W-W2-1BG |
|
Cool White | 3.20 × 1.60 × 1.10 | 1100 | 0.27 | 0.26 | 120 | Download | |
| S150xx Series(White) | S150W-W6-1ES |
|
Warm White | 3.20 × 1.60 × 1.10 | 900 | 0.43 | 0.40 | 120 | Download | |

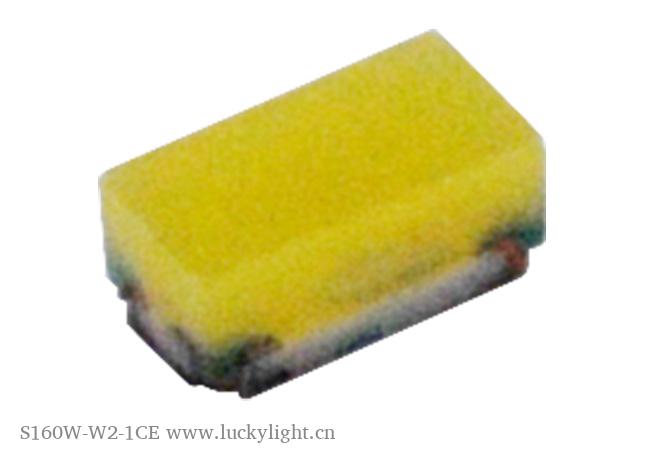

| S160xx Series(White) | S160W-W2-1CS-5MA |
|
Cool White | 1.00 × 0.50 × 0.45 | 180 | 0.275 | 0.275 | 120 | Download | |
| S192Pxx Series(White) | S192PW-W2-1CH |
|
Cool White | 1.60 × 0.80 × 0.60 | 800 | 0.31 | 0.32 | 130 | Download | |
| S192xx Series(White) | S192W-W2-1AG |
|
Cool White | 1.60 × 0.80 × 0.60 | 650 | 0.27 | 0.27 | 130 | Download | |
| S11Pxx Series(White) | S11PW-W2-1CE |
|
Cool White | 3.00 × 1.00 × 2.00 | 150 | 0.31 | 0.32 | 120 | Download | |

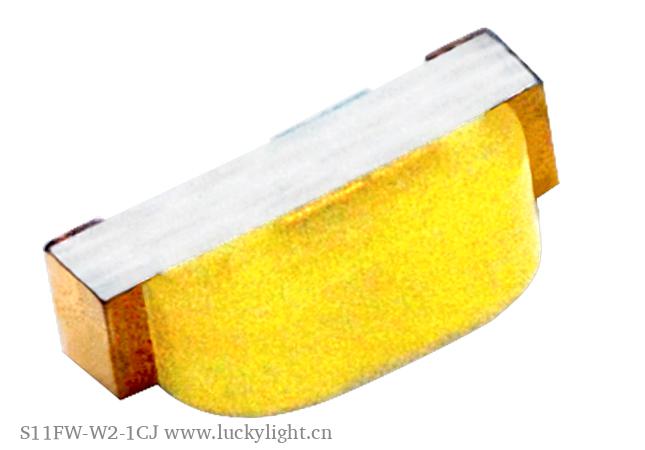

| S11Fxx Series(White) | S11FW-W2-1CJ |
|
Cool White | 2.10 × 0.60 × 1.00 | 500 | 0.31 | 0.32 | 130 | Download | |
| S110xx Series（White） | S110W-W2-1CS |
|
Cool White | 3.20 × 1.00 × 1.50 | 800 | 0.30 | 0.30 | 120 | Download | |
| SR180xx Series(White) | SR180W-W2-1C |
|
Cool White | 3.20 × 2.40 × 2.50 | 250 | 0.31 | 0.32 | 160 | Download | |
| S35Exx Series(White) | S35EW-W2-1CE |
|
Cool White | 3.20 × 1.60 × 1.10 | 450 | 0.31 | 0.32 | 120 | Download | |
| RT3528xx Series (White) | RT3528W-W2-1F |
|
Cool White | 3.50 × 2.80 × 3.25 | 2500 | 0.32 | 0.33 | 60 | Download | |
| R1608xx Series(White) | R1608W-W2-1C |
|
Cool White | 1.60 × 0.80 × 0.55 | 1100 | 0.27 | 0.28 | 120 | Download | |
| R3020xx Series (White) | R3020W-W2-1F |
|
Cool White | 3.00 × 2.00 × 1.30 | 2300 | 0.31 | 0.32 | 130 | Download | |
| R3020xx Series (White) | R3020W-W6-1F |
|
Warm White | 3.00 × 2.00 × 1.30 | 2100 | 0.43 | 0.40 | 130 | Download | |
| R3528xx Series (White) | R3528W-W2-1F |
|
Cool White | 3.50 × 2.80 × 1.90 | 2500 | 0.31 | 0.32 | 120 | Download | |
| R3528xx Series (White) | R3528W-W6-1F |
|
Warm White | 3.50 × 2.80 × 1.90 | 2300 | 0.43 | 0.40 | 120 | Download | |
| R5050xx Series (White) | R5050W-W2-3A |
|
Cool White | 5.50 × 5.00 × 1.50 | 6500 | 0.31 | 0.32 | 120 | Download | |
| R5050xx Series (White) | R5050W-W6-3A |
|
Warm White | 5.50 × 5.00 × 1.50 | 6300 | 0.43 | 0.40 | 120 | Download | |
| V213xx Series (White) | V213W-W2-1C-Y |
|
Cool White | 2.80 × 0.80 × 1.20 | 1600 | 0.30 | 0.30 | 120 | Download | |
| V020xx Series (White) | V020W-2R2 |
|
Cool White | 3.80 × 0.60 × 1.00 | 2800 | 0.28 | 0.27 | 120 | Download | |
| V335xx Series (White) | V335W-1R2 |
|
Cool White | 4.00 × 0.80 × 1.40 | 1800 | 0.31 | 0.32 | 120 | Download |
