Single color PLCC LEDs are offered in a variety of packages such as PLCC-2, PLCC-4, PLCC-6 and Side View Type options, and color choices includes green, red, yellow, white, blue and orange.
Single color PLCC LEDs series is perfectly suited for a variety of cross-industrial applications due to its small package outline, durability and superior brightness. Its versatility and reliability make it a preferred choice for automotive interior lighting specifically as instrumentation panel, central console and cabin backlighting. Besides, it effectively combines performance and innovation, making it a perfect choice for office automation, home applications, various decorations lighting, commercial lighting and industrial equipment application.
These series of products are encapsulated in silicon to increase their tolerance of environmentally hostile applications. Several Flux choices are available in each color for increasing design flexibility.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color |
Size (mm) (L × W × H) |
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| R3528xx Series | R3528VC-2B |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 1.90 | 250 | 624 | 120 | Download | |
| RT3528xx Series | RT3528BG1C-A-G3-1B |
|
Bluish Green | Water Clear | 3.50 × 2.80 × 3.50 | 8000 | 505 | 30 | Download | |
| RT3528xx Series | RT3528PG1C-A-G5-1B |
|
Pure Green | Water Clear | 3.50 × 2.80 × 3.50 | 12000 | 520 | 30 | Download | |
| RT3528xx Series | RT3528Y1C-2B-AB |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 3.50 | 5000 | 590 | 30 | Download | |
| RT3528xx Series | RT3528V1C-C-5C |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 3.50 | 10000 | 620 | 30 | Download | |
| RT3528xx Series | RT3528Y1C-C-5C |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 3.50 | 10000 | 590 | 30 | Download | |
| RT3528xx Series | RT3528YM-4C |
|
Super Bright Yellow | White Diffused | 3.50 × 2.80 × 3.20 | 3000 | 590 | 60 | Download | |
| RT3528xx Series | RT3528VM-4C |
|
Super Bright Red | White Diffused | 3.50 × 2.80 × 3.20 | 3000 | 624 | 60 | Download | |
| RT3528xx Series | RT3528V1C-2B-AB |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 3.50 | 5000 | 624 | 30 | Download | |
| R1608xx Series | R1608BC-B4-1B |
|
Blue | Water Clear | 1.60 × 0.80 × 0.55 | 300 | 465 | 120 | Download | |
| R1608xx Series | R1608PGC-G5-1B |
|
Pure Green | Water Clear | 1.60 × 0.80 × 0.55 | 1600 | 525 | 120 | Download | |

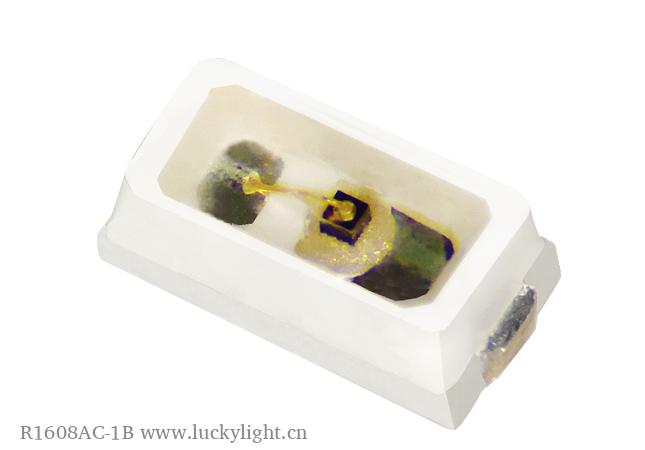

| R1608xx Series | R1608AC-1B |
|
Super Bright Orange | Water Clear | 1.60 × 0.80 × 0.55 | 150 | 605 | 120 | Download | |
| R1608xx Series | R1608VC-1B |
|
Super Bright Red | Water Clear | 1.60 × 0.80 × 0.55 | 250 | 624 | 120 | Download | |
| R1608xx Series | R1608YC-1B |
|
Super Bright Yellow | Water Clear | 1.60 × 0.80 × 0.55 | 250 | 590 | 120 | Download | |
| R2835xx Series | R2835BC-B2M-M10 |
|
Blue | Water Clear | 3.50 × 2.80 × 0.70 | 1500 | 455 | 120 | Download | |
| R2835xx Series | R2835BC-B4M-M10 |
|
Blue | Water Clear | 3.50 × 2.80 × 0.7 | 1500 | 465 | 120 | Download | |
| R2835xx Series | R2835UVC-Q8M |
|
UV | Water Clear | 3.50 × 2.80 × 0.70 | 100 | λp-415 | 120 | Download | |
| R2835xx Series | R2835PGC-G5M-M40 |
|
Pure Green | Water Clear | 3.50 × 2.80 × 0.70 | 4500 | 525 | 120 | Download | |
| R2835xx Series | R2835FRC-02W |
|
Deep Red | Water Clear | 3.50 × 2.80 × 0.70 | 30mW | λp-730 | 120 | Download | |
| R2835xx Series | R2835RC-5C |
|
Deep Red | Water Clear | 3.50 × 2.80 × 0.70 | 2 Lm | 660 | 120 | Download | |
| R2835xx Series | R2835VC-S5 |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 0.70 | 2000 | 624 | 120 | Download | |
| R2835xx Series | R2835YC-S5 |
|
Super Bright Yellow | Water Clear | 3.50 × 2.80 × 0.70 | 2000 | 590 | 120 | Download | |
| R3020xx Series | R3020AC-2B |
|
Super Bright Orange | Water Clear | 3.00 × 2.00 × 1.30 | 300 | 605 | 130 | Download | |
| R3020xx Series | R3020GC-2B |
|
Yellow Green | Water Clear | 3.00 × 2.00 × 1.30 | 50 | 573 | 130 | Download | |
| R3020xx Series | R3020VC-2B |
|
Super Bright Red | Water Clear | 3.00 × 2.00 × 1.30 | 250 | 624 | 130 | Download | |
| R3020xx Series | R3020YC-2B |
|
Super Bright Yellow | Water Clear | 3.00 × 2.00 × 1.30 | 250 | 590 | 130 | Download | |
| R3020xx Series | R3020BC-B4-1B |
|
Blue | Water Clear | 3.00 × 2.00 × 1.30 | 400 | 470 | 130 | Download | |
| R3020xx Series | R3020PGC-G5-1B |
|
Pure Green | Water Clear | 3.00 × 2.00 × 1.30 | 1200 | 525 | 130 | Download | |
| R5050xx Series | R5050AC-2B |
|
Super Bright Orange | Water Clear | 5.50 × 5.00 × 1.50 | 600 | 605 | 120 | Download | |
| R5050xx Series | R5050GC-2B |
|
Yellow Green | Water Clear | 5.50 × 5.00 × 1.50 | 350 | 573 | 120 | Download | |
| R5050xx Series | R5050VC-2B |
|
Super Bright Red | Water Clear | 5.50 × 5.00 × 1.50 | 600 | 624 | 120 | Download | |
| R5050xx Series | R5050VC-3C |
|
Super Bright Red | Water Clear | 5.50 × 5.00 × 1.50 | 2000 | 624 | 120 | Download | |
| R5050xx Series | R5050YC-2B |
|
Super Bright Yellow | Water Clear | 5.50 × 5.00 × 1.50 | 700 | 590 | 120 | Download | |
| R5050xx Series | R5050YC-3C |
|
Super Bright Yellow | Water Clear | 5.50 × 5.00 × 1.50 | 1600 | 590 | 120 | Download | |
| R5050xx Series | R5050BC-B4-1B |
|
Blue | Water Clear | 5.50 × 5.00 × 1.50 | 1200 | 470 | 120 | Download | |
| R5050xx Series | R5050PGC-G5-1B |
|
Pure Green | Water Clear | 5.50 × 5.00 × 1.50 | 4500 | 525 | 120 | Download | |
| R3528xx Series | R3528AC-2B |
|
Super Bright Orange | Water Clear | 3.50 × 2.80 × 1.90 | 200 | 605 | 120 | Download | |
| R3528xx Series | R3528BC-B4-1B |
|
Blue | Water Clear | 3.50 × 2.80 × 1.90 | 400 | 470 | 120 | Download | |
| R3528xx Series | R3528GC-2B |
|
Yellow Green | Water Clear | 3.50 × 2.80 × 1.90 | 70 | 573 | 120 | Download | |
| R3528xx Series | R3528VC-3C |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 1.90 | 600 | 624 | 120 | Download | |
| R3528xx Series | R3528YC-2B |
|
Super Bright Yellow | Water Clear | 3.50 × 2.80 × 1.90 | 250 | 590 | 120 | Download | |
| R3528xx Series | R3528YC-3C |
|
Super Bright Yellow | Water Clear | 3.50 × 2.80 × 1.90 | 600 | 590 | 120 | Download | |
| R3528xx Series | R3528PGC-G5-1B |
|
Pure Green | Water Clear | 3.50 × 2.80 × 1.90 | 1200 | 525 | 120 | Download | |
| R3528xx Series | R3528JAC-A-5C-AM |
|
Super Bright Orange | Water Clear | 3.50 × 2.80 × 1.90 | 1800 | 605 | 120 | Download | |
| R3528xx Series | R3528JVC-A-5C-AM |
|
Super Bright Red | Water Clear | 3.50 × 2.80 × 1.90 | 1800 | 624 | 120 | Download | |
| R3528xx Series | R3528JYC-A-5C-AM |
|
Super Bright Yellow | Water Clear | 3.50 × 2.80 × 1.90 | 1800 | 590 | 120 | Download |
