Luckylight offers an extensive range of high quality Single color chip LED which are small size, high efficiency and low power consumption.
Single color chip LED products are available in standard and high brightness colors. We adopt our proven AlGaAs, AlInGaP and InGaN technology and provide the broadest range of colors from well-known LED chip suppliers. These products use the industry standard footprint, with top-mount, reverse-mount, and right angle-mount packaging options. We offer lights with such colors like and color choices include green, red, yellow, white, blue and orange.
Single color chip LEDs are used in a variety of applications including automotive interior and indication lighting, LCD and push button backlighting, white goods and appliances, industrial measurement and control systems, and for symbol lighting and status indication in computer peripherals and consumer goods.
Low power consumption, small size and easy assembly make the Chip LED ideal for backlighting smartphone handsets as well as backlighting industrial displays.
Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color |
Size (mm) (L × W × H) |
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
---|---|---|---|---|---|---|---|---|---|---|

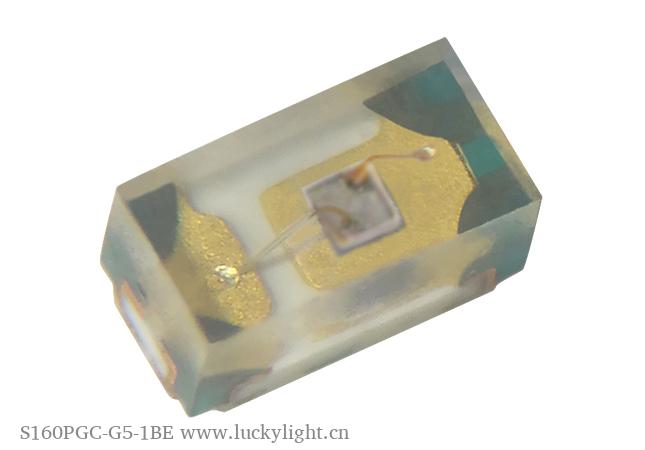

S160xx Series | S160PGC-G5-1BS | Pure Green | Water Clear | 1.00 × 0.50 × 0.45 | 650 | 525 | 120 | Download | ||
S170xx Series | S170RC-1BJ | Red | Water Clear | 2.00 × 1.25 × 1.10 | 40 | 640 | 120 | Download | ||
S150xx Series | S150RC-1BS | Red | Water Clear | 3.20 × 1.60 × 1.10 | 35 | 640 | 120 | Download | ||
S162xx Series | S162PGC-G5-1BJ | Pure Green | Water Clear | 1.00 × 0.50 × 0.40 | 650 | 525 | 120 | Download | ||
S162xx Series | S162BC-B4-1BJ | Blue | Water Clear | 1.00 × 0.50 × 0.40 | 140 | 467 | 120 | Download | ||
S162xx Series | S162YC-1BJ | Super Bright Yellow | Water Clear | 1.00 × 0.50 × 0.40 | 120 | 590 | 120 | Download | ||
S162xx Series | S162GC-1BJ | Yellow Green | Water Clear | 1.00 × 0.50 × 0.40 | 35 | 573 | 120 | Download | ||
S162xx Series | S162VC-1BJ | Super Bright Red | Water Clear | 1.00 × 0.50 × 0.40 | 120 | 624 | 120 | Download | ||
S162xx Series | S162AC-1BJ | Super Bright Orange | Water Clear | 1.00 × 0.50 × 0.40 | 120 | 605 | 120 | Download | ||
SR180xx Series | SR180BC-B4-1B | Blue | Water Clear | 3.20 × 2.40 × 2.50 | 1500 | 470 | 20 | Download | ||
S192xx Series | S192YC-1BG | Super Bright Yellow | Water Clear | 1.60 × 0.80 × 0.60 | 120 | 590 | 130 | Download | ||
S350xx Series | S350VC-2BS | Super Bright Red | Water Clear | 3.20 × 1.60 × 1.40 | 400 | 624 | 60 | Download | ||
S350xx Series | S350AC-2BS | Super Bright Orange | Water Clear | 3.20 × 1.60 × 1.40 | 500 | 605 | 60 | Download | ||
S350xx Series | S350YC-2BS | Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.40 | 450 | 590 | 60 | Download | ||
S350xx Series | S350GC-2BS | Yellow Green | Water Clear | 3.20 × 1.60 × 1.40 | 200 | 573 | 60 | Download | ||
S350xx Series | S350PGC-G5-1BS | Pure Green | Water Clear | 3.20 × 1.60 × 1.40 | 1000 | 525 | 60 | Download | ||
S350xx Series | S350BC-B4-1BS | Blue | Water Clear | 3.20 × 1.60 × 1.40 | 850 | 470 | 60 | Download | ||
SR170xx Series | SR170BC-B4-1B | Blue | Water Clear | 2.00 × 1.25 × 1.40 | 1500 | 470 | 30 | Download | ||
SR170xx Series | SR170PGC-G5-1B | Pure Green | Water Clear | 2.00 × 1.25 × 1.40 | 3500 | 525 | 30 | Download | ||
SR170xx Series | SR170VC-2B | Super Bright Red | Water Clear | 2.00 × 1.25 × 1.40 | 1100 | 624 | 30 | Download | ||
S160xx Series | S160VC-2BS | Super Bright Red | Water Clear | 1.00 × 0.50 × 0.45 | 100 | 624 | 120 | Download | ||
S170xx Series | S170YC-1BG | Super Bright Yellow | Water Clear | 2.00 × 1.25 × 1.10 | 120 | 590 | 120 | Download | ||
S170xx Series | S170BC-B4-1AG | Blue | Water Clear | 2.00 × 1.25 × 1.10 | 160 | 470 | 120 | Download | ||
SR180xx Series | SR180AC-2B | Super Bright Orange | Water Clear | 3.20 × 2.40 × 2.50 | 1500 | 605 | 20 | Download | ||
SR180xx Series | SR180PGC-G5-1B | Pure Green | Water Clear | 3.20 × 2.40 × 2.50 | 4000 | 525 | 20 | Download | ||
SR180xx Series | SR180VC-2B | Super Bright Red | Water Clear | 3.20 × 2.40 × 2.50 | 1500 | 624 | 20 | Download | ||
SR180xx Series | SR180YC-2B | Super Bright Yellow | Water Clear | 3.20 × 2.40 × 2.50 | 1500 | 590 | 20 | Download | ||
SR180xx Series | SR180GC-2B | Yellow Green | Water Clear | 3.20 × 2.40 × 2.50 | 1000 | 573 | 20 | Download | ||
S170xx Series | S170PGC-G5-1AG | Pure Green | Water Clear | 2.00 × 1.25 × 1.10 | 600 | 525 | 120 | Download | ||
S170xx Series | S170GC-1BG | Yellow Green | Water Clear | 2.00 × 1.25 × 1.10 | 40 | 573 | 120 | Download | ||
S170xx Series | S170AC-1BG | Super Bright Orange | Water Clear | 2.00 × 1.25 × 1.10 | 150 | 605 | 120 | Download | ||
S170xx Series | S170VC-1BG | Super Bright Red | Water Clear | 2.00 × 1.25 × 1.10 | 115 | 624 | 120 | Download | ||
S150xx Series | S150BC-B4-1AG | Blue | Water Clear | 3.20 × 1.60 × 1.10 | 150 | 470 | 120 | Download | ||
S150xx Series | S150PGC-G5-1AG | Pure Green | Water Clear | 3.20 × 1.60 × 1.10 | 600 | 525 | 120 | Download | ||
S150xx Series | S150GC-1BG | Yellow Green | Water Clear | 3.20 × 1.60 × 1.10 | 40 | 573 | 120 | Download | ||
S150xx Series | S150YC-1BG | Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.10 | 150 | 590 | 120 | Download | ||
S150xx Series | S150AC-1BG | Super Bright Orange | Water Clear | 3.20 × 1.60 × 1.10 | 150 | 605 | 120 | Download | ||
S150xx Series | S150VC-1BG | Super Bright Red | Water Clear | 3.20 × 1.60 × 1.10 | 115 | 624 | 120 | Download | ||

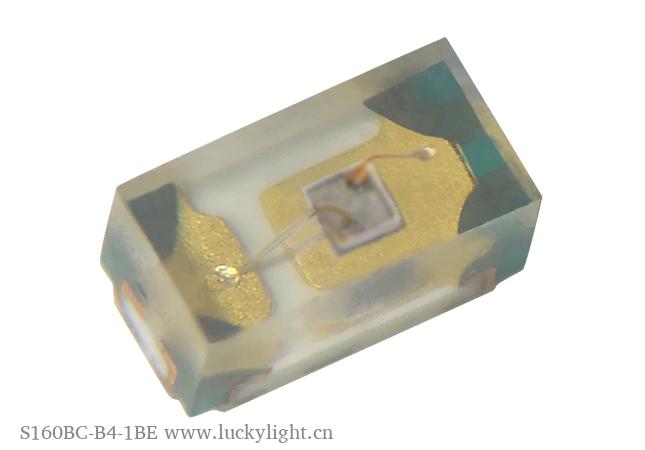

S160xx Series | S160BC-B4-1BS | Blue | Water Clear | 1.00 × 0.50 × 0.45 | 150 | 470 | 120 | Download | ||
S160xx Series | S160GC-2BS | Yellow Green | Water Clear | 1.00 × 0.50 × 0.45 | 30 | 573 | 120 | Download | ||
S160xx Series | S160YC-2BS | Super Bright Yellow | Water Clear | 1.00 × 0.50 × 0.45 | 110 | 590 | 120 | Download | ||

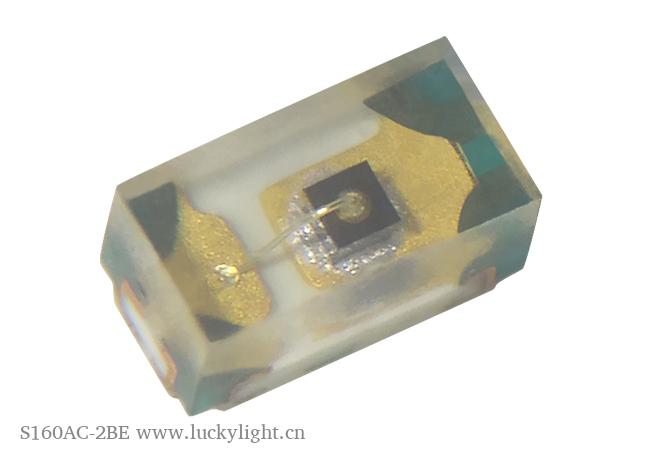

S160xx Series | S160AC-2BS | Super Bright Orange | Water Clear | 1.00 × 0.50 × 0.45 | 150 | 605 | 120 | Download | ||
S192xx Series | S192AC-1BG | Super Bright Orange | Water Clear | 1.60 × 0.80 × 0.60 | 120 | 605 | 130 | Download | ||
S192xx Series | S192BC-B4-1AG | Blue | Water Clear | 1.60 × 0.80 × 0.60 | 200 | 470 | 130 | Download | ||
S192xx Series | S192GC-1BG | Yellow Green | Water Clear | 1.60 × 0.80 × 0.60 | 40 | 573 | 130 | Download | ||
S192xx Series | S192PGC-G5-1AG | Pure Green | Water Clear | 1.60 × 0.80 × 0.60 | 850 | 525 | 130 | Download | ||
S192xx Series | S192VC-1BG | Super Bright Red | Water Clear | 1.60 × 0.80 × 0.60 | 120 | 624 | 130 | Download | ||
SR190xx Series | SR190PGC-G5-1BJ | Pure Green | Water Clear | 1.60 × 0.80 × 0.95 | 2500 | 520 | 35 | Download | ||
SR190xx Series | SR190YC-2BJ | Super Bright Yellow | Water Clear | 1.60 × 0.80 × 0.95 | 700 | 590 | 35 | Download | ||
SR190xx Series | SR190AC-2BJ | Super Bright Orange | Water Clear | 1.60 × 0.80 × 0.95 | 700 | 605 | 35 | Download |
