Luckylight offers an extensive range of high quality reverse mount chip LEDs which are small in size, high efficiency and low power consumption. Reverse mountable chip LEDs are for lighting the non-component side of a PCB board. In this reverse mounting configuration, this LED emits light through a small cut-out hole in the PC board.
Reverse mount chip LEDs packages are available in popular SMD 1206 and wing lead type with different feature options in size, shape, viewing angle and color combination. Colors are available in blue, green, yellow, orange and red etc. These devices are packaged in automation-friendly tape and reel to increase productivity and reduce assembly cost.
The small size, narrow footprint, and low profile make this kind of LED excellent for backlighting, status indication, and front panel illumination application.
| Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Resin Color |
Size (mm) (L × W × H) |
Luminous Intensity Typ.(mcd) |
Wavelength λd(nm) |
Viewing Angle 2 θ ½ |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| S35Exx Series | S35EVC-2BE |
|
Super Bright Red | Water Clear | 3.20 × 1.60 × 1.10 | 200 | 624 | 60 | Download | |
| S35Exx Series | S35EGC-2BE |
|
Yellow Green | Water Clear | 3.20 × 1.60 × 1.10 | 80 | 573 | 60 | Download | |
| S35Exx Series | S35EYC-2BE |
|
Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.10 | 200 | 590 | 60 | Download | |
| S35Exx Series | S35EBC-B4-1BE |
|
Blue | Water Clear | 3.20 × 1.60 × 1.10 | 120 | 470 | 60 | Download | |

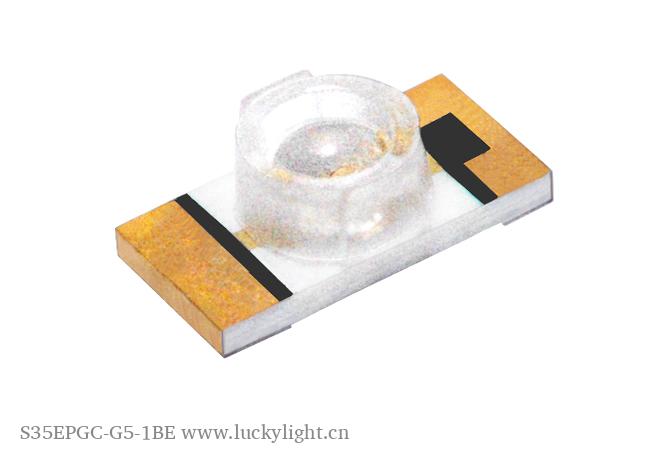

| S35Exx Series | S35EPGC-G5-1BE |
|
Pure Green | Water Clear | 3.20 × 1.60 × 1.10 | 600 | 525 | 60 | Download | |
| S15Axx Series | S15ABC-B4-1BE |
|
Blue | Water Clear | 3.20 × 1.60 × 1.10 | 50 | 470 | 130 | Download | |
| S15Axx Series | S15AGC-2BE |
|
Yellow Green | Water Clear | 3.20 × 1.60 × 1.10 | 30 | 573 | 130 | Download | |
| S15Axx Series | S15APGC-G5-1BE |
|
Pure Green | Water Clear | 3.20 × 1.60 × 1.10 | 250 | 525 | 130 | Download | |
| S15Axx Series | S15AVC-2BE |
|
Super Bright Red | Water Clear | 3.20 × 1.60 × 1.10 | 60 | 624 | 130 | Download | |
| S15Axx Series | S15AYC-2BE |
|
Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.10 | 60 | 590 | 130 | Download | |
| S15Bxx Series | S15BBC-B4-1BE |
|
Blue | Water Clear | 3.20 × 1.60 × 1.10 | 50 | 470 | 130 | Download | |
| S15Bxx Series | S15BGC-2BE |
|
Yellow Green | Water Clear | 3.20 × 1.60 × 1.10 | 30 | 573 | 130 | Download | |
| S15Bxx Series | S15BPGC-G5-1BE |
|
Pure Green | Water Clear | 3.20 × 1.60 × 1.10 | 250 | 525 | 130 | Download | |
| S15Bxx Series | S15BVC-2BE |
|
Super Bright Red | Water Clear | 3.20 × 1.60 × 1.10 | 60 | 624 | 130 | Download | |
| S15Bxx Series | S15BYC-2BE |
|
Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.10 | 60 | 590 | 130 | Download | |

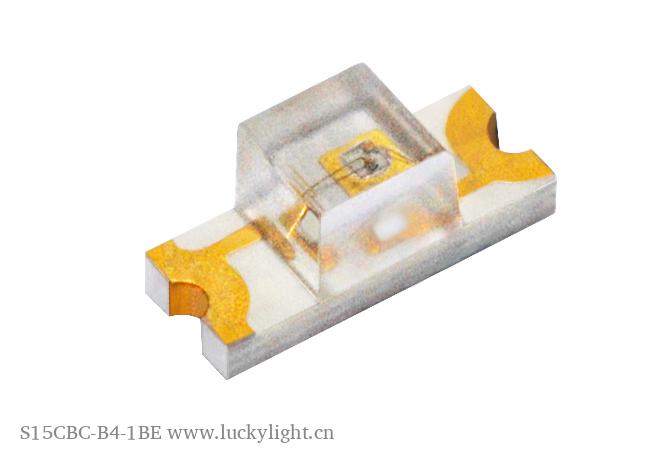

| S15Cxx Series | S15CBC-B4-1BE |
|
Blue | Water Clear | 3.20 × 1.25 × 1.10 | 50 | 470 | 130 | Download | |
| S15Cxx Series | S15CGC-2BE |
|
Yellow Green | Water Clear | 3.20 × 1.25 × 1.10 | 30 | 573 | 130 | Download | |
| S15Cxx Series | S15CPGC-G5-1BE |
|
Pure Green | Water Clear | 3.20 × 1.25 × 1.10 | 250 | 525 | 130 | Download | |
| S15Cxx Series | S15CYC-2BE |
|
Super Bright Yellow | Water Clear | 3.20 × 1.25 × 1.10 | 60 | 590 | 130 | Download | |
| S15Cxx Series | S15CVC-2BE |
|
Super Bright Red | Water Clear | 3.20 × 1.25 × 1.10 | 60 | 624 | 130 | Download | |
| SR160xx Series | SR160AC-2BE |
|
Super Bright Orange | Water Clear | 3.20 × 1.60 × 1.90 | 1000 | 605 | 30 | Download | |
| SR160xx Series | SR160BC-B4-1BE |
|
Blue | Water Clear | 3.20 × 1.60 × 1.90 | 750 | 470 | 30 | Download | |
| SR160xx Series | SR160GC-2BE |
|
Yellow Green | Water Clear | 3.20 × 1.60 × 1.90 | 350 | 573 | 30 | Download | |
| SR160xx Series | SR160PGC-G5-1BE |
|
Pure Green | Water Clear | 3.20 × 1.60 × 1.90 | 1500 | 525 | 30 | Download | |
| SR160xx Series | SR160VC-2BE |
|
Super Bright Red | Water Clear | 3.20 × 1.60 × 1.90 | 650 | 624 | 30 | Download | |
| SR160xx Series | SR160YC-2BE |
|
Super Bright Yellow | Water Clear | 3.20 × 1.60 × 1.90 | 700 | 590 | 30 | Download | |
| R3528xx-TR10 Series | R3528BC-B4-1B-TR10 |
|
Blue | Water Clear | 5.20 × 2.70 × 1.80 | 400 | 465 | 120 | Download | |
| R3528xx-TR10 Series | R3528GC-2B-TR10 |
|
Super Yellow Green | Water Clear | 5.20 × 2.70 × 1.80 | 40 | 572 | 120 | Download | |
| R3528xx-TR10 Series | R3528VC-2B-TR10 |
|
Super Bright Red | Water Clear | 5.20 × 2.70 × 1.80 | 150 | 624 | 120 | Download | |
| R3528xx-TR10 Series | R3528YC-2B-TR10 |
|
Super Bright Yellow | Water Clear | 5.20 × 2.70 × 1.80 | 150 | 590 | 120 | Download |
