Ultraviolet light is invisible light with a wavelength of 100 to 400 nm.
With a wavelength range of 100 to 280nm, light called UV-C (deep ultraviolet) cannot reach the earth. But it has many functions such as sterilization, organic decomposition, photopolymerization and sensing.
Luckylight Electronics has high-power technology in the deep ultraviolet field, and pays special attention to its sterilization function.
| Select |
Product Line
|
Part Number | View Picture |
Size (mm) (L × W × H) |
Power (W) |
Radiant Flux (mW) |
VF (V) |
IF (mA) |
P.W λp(nm) |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|
| C3535DUVC-xx Series | C3535DUVC-QBH-1C-D |
|
3.50 × 3.50 × 1.60 | 0.5 | 8.0mW | 6.5 | 80 | 275 | Download | |
| C3535DUVC-xx Series | C3535DUVC-QBH-2C-D |
|
3.50 × 3.50 × 1.60 | 1 | 16.0mW | 6.5 | 150 | 275 | Download | |

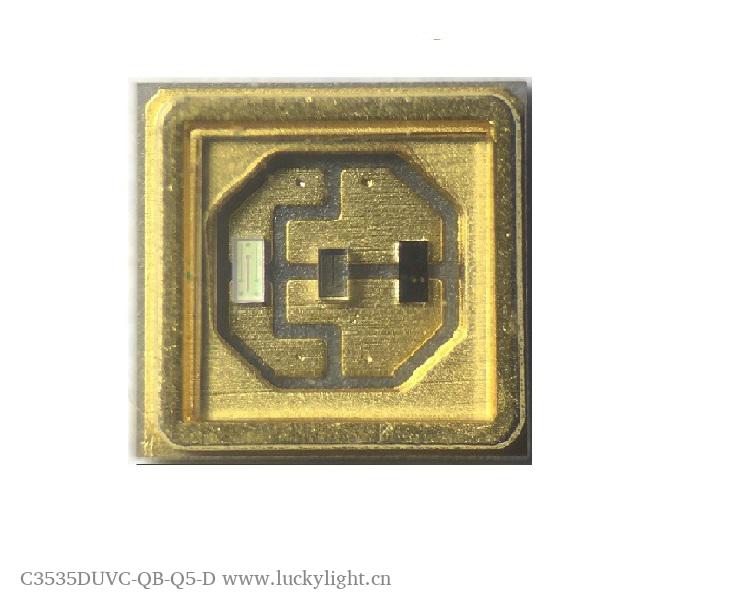

| C3535DUVC-xx Series | C3535DUVC-QB-Q5-D |
|
3.50 × 3.50 × 1.36 | 0.25 | 5mW | 6 | 40 | 275+395 | Download | |
| C3535DUVC-xx Series | C3535DUVC-QB-D |
|
3.50 × 3.50 × 1.36 | 0.25 | 4mW | 6 | 30 | 275 | Download | |
| C3535DUVC-xx Series | C3535DUVC-QBH-DY |
|
3.50 × 3.50 × 1.68 | 0.5 | 13mW | 6 | 100 | 275 | Download | |
| C3535DUVC-xx Series | C3535DUVC-QB-DY |
|
3.50 × 3.50 × 1.68 | 0.2 | 5mW | 6.0 | 40 | 275 | Download | |
| C3737DUVC-xx Series | C3737DUVC-QBH-D |
|
3.70 × 3.70 × 1.75 | 1 | 15mW | 6.5 | 100 | 275 | Download | |

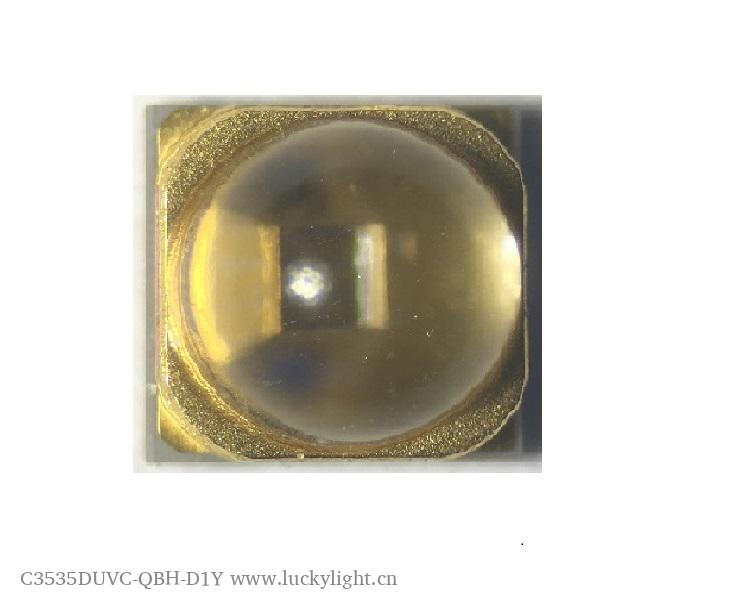

| C3535DUVC-xx Series | C3535DUVC-QBH-D1Y |
|
3.40 × 3.40 × 2.95 | 0.5 | 15mW | 6 | 150 | 275 | Download | |
| C5050DUVC-xx Series | C5050DUVC-QBH-1C-D |
|
5.0 × 5.0 × 1.70 | 2.45 | 50mW | 6.5 | 350 | 275 | Download | |
| C5050DUVC-xx Series | C5050DUVC-QBH-2C-D |
|
5.0 × 5.0 × 1.70 | 4.2 | 80mW | 6.5 | 600 | 275 | Download |
