Luckylight offers the most comprehensive series of Color Mid /High-Power LEDs with high performance and luminous flux. Because color mid /high power LEDs generate a large amount of heat, special heat dissipation technologies are used with them. Part of Color High-power LEDs utilizes Ceramic, CSP and EMC packaging technologies to boost performance.
Color Mid /High Power LEDs include 0.1W, 0.2W, 0.5W, 1W, 3W and 5W options and color choices include green, red, yellow, blue, orange, UV, RGB and RGBW with special combination.
Color Mid Power LEDs address a wide range of markets, electronic signs and signals, automotive, indoor area lighting and retrofit lamp applications. Color High-Power LED products are used in a variety of applications including Contour lighting, Stairway lighting, Outdoor floodlights, Landscape lighting, Security and Automotive and more.
Lucky Light offer many kinds of mid/ high power LEDs which are categorized by Forward (driven) Current, Flux, Wavelength and viewing angle. The parametric filters on our website can help refine your search results depending on the required specifications.
| Select |
Product Line
|
Part Number | View Picture |
Color
|
Size (mm) (L × W × H) |
Power (W) |
Flux (lm) |
VF (V) |
IF (mA) |
D.W λd(nm) |
DataSheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HPR5050RGB Series | HPR5050RGBC-001-B05W |
|
|
5.20 × 5.00 × 1.30 | 0.5 |
|
|
150 |
|
Download | |
| C3535xx Series | C3535UVC-Q4-3W |
|
UV | 3.50 × 3.50 × 2.00 | 3 | 3 | 3.6 | 700 | λp_395 | Download | |
| C3535xx Series | C3535PGC-G5H-Q65 |
|
Pure Green | 3.50 × 3.50 × 2.00 | 1 | 85 | 3.2 | 350 | 525 | Download | |
| C3535xx Series | C3535UVC-Q9-3W |
|
UV | 3.50 × 3.50 × 2.00 | 3 | 2 | 3.6 | 700 | λp_365 | Download | |
| C3535xx Series | C3535BC-B4H-Q15 |
|
Blue | 3.50 × 3.50 × 2.00 | 1 | 25 | 3.2 | 350 | 470 | Download | |
| C3535xx Series | C3535YC-H40 |
|
Super Bright Yellow | 3.50 × 3.50 × 2.00 | 1 | 50 | 2.2 | 350 | 590 | Download | |
| C3535xx Series | C3535VC-H40 |
|
Super Bright Red | 3.50 × 3.50 × 2.00 | 1 | 50 | 2.2 | 350 | 624 | Download | |
| R3030Exx Series | R3030ERGBC-001-1D5W |
|
|
3.00 × 3.00 × 0.65 | 0.5 |
|
|
150 |
|
Download | |
| R3030Exx Series | R3030ERC-1W |
|
Deep Red | 3.00 × 3.00 × 0.60 | 1 | 15 | 2.1 | 350 | λp-660 | Download | |
| R3030Exx Series | R3030EBC-B2H-1W |
|
Blue | 3.00 × 3.00 × 0.60 | 1 | 20 | 3.2 | 350 | 455 | Download | |

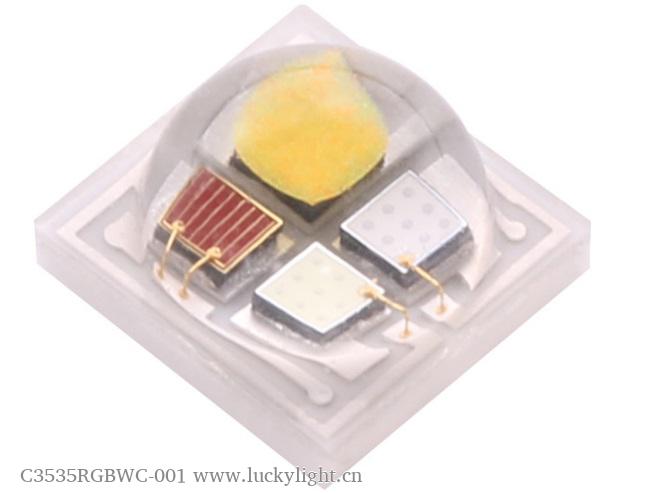

| C3535xx Series | C3535RGBWC-001 |
|
|
3.50 × 3.50 × 2.20 | 1 |
|
|
350 |
|
Download | |
| C3838UVxx Series | C3838UV2C-Q4-BL |
|
UV | 3.80 × 3.80 × 2.95 | 3 | 4 | 3.6 | 700 | λp-395 | Download | |
| C5050xx Series | C5050BC-B4H-10WO |
|
Blue | 5.00 × 5.00 × 3.00 | 10 | 250 | 3.70 | 3000 | 465 | Download | |
| RT2835xx Series | RT2835PGC-G5-S15 |
|
Pure Green | 3.5 × 2.8 × 1.85 | 0.2 | 18 | 3.2 | 60 | 525 | Download | |
| RT2835xx Series | RT2835YC-S5 |
|
Super Bright Yellow | 3.5 × 2.8 × 1.85 | 0.2 | 8 | 2.1 | 60 | 590 | Download | |
| RT2835xx Series | RT2835VC-S5 |
|
Super Bright Red | 3.5 × 2.8 × 1.85 | 0.2 | 8 | 2.1 | 60 | 624 | Download | |
| RT2835xx Series | RT2835BC-B4-S3 |
|
Blue | 3.5 × 2.8 × 1.85 | 0.2 | 5 | 3.2 | 60 | 465 | Download | |
| HP70Mxx Series | HP70MBD |
|
Blue | Φ8 | 3 | 35 | 3.4 | 700 | 470 | Download | |
| HP70Mxx Series | HP70MVG |
|
Super Bright Red | Φ8 | 3 | 70 | 2.2 | 700 | 624 | Download | |
| HP60Mxx Series | HP60MRGBC-001 |
|
|
Φ8 | 1 |
|
|
350 |
|
Download | |
| HP60Mxx Series | HP60MYD |
|
Super Bright Yellow | Φ8 | 1 | 45 | 2.2 | 350 | 590 | Download | |
| HP60Mxx Series | HP60MBC |
|
Blue | Φ8 | 1 | 25 | 3.4 | 350 | 470 | Download | |
| HP60Mxx Series | HP60MPGF |
|
Pure Green | Φ8 | 1 | 90 | 3.4 | 350 | 525 | Download | |
| HP60Mxx Series | HP60MVD |
|
Super Bright Red | Φ8 | 1 | 45 | 2.2 | 350 | 624 | Download |
