LED Light Bars are luckylight’s innovative solution to fixed message annunciation. They are used as annunciator that serves three customer functions: status indication, backlighting fixed messages and analog level indications (arrays).
The LED Light Bars provide exceptional brightness at very low drive current for those applications where portability and battery backup are vital. These rectangular light sources are configured in single-inline and dual-in-line packages that contain either single or segmented light emitting areas. They are also X-Y stackable. Color choices include green, red, yellow, white, blue, orange and bi-color.
Luckylight’s LED Light Bars are used in a wide variety of end products including test and measurement equipment, point-of-sale terminals, telecom systems, office equipment, consumer electronics, and medical equipment.
Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Face Color |
Dimension (mm) (L × W × H) |
Luminous Intensity Typ.(mcd) |
λd(nm) CIE(x,y) |
DataSheet |
---|---|---|---|---|---|---|---|---|---|
KWL-R1210xxx Series | KWL-R1210RB | Deep Red | Black | 12.5 × 10.1 × 7.9 | 25.0 | 630 | Download | ||
KWL-R1210xxx Series | KWL-R1210GB | Yellow Green | Black | 12.5 × 10.1 × 7.9 | 18.0 | 572 | Download | ||
KWL-R1210xxx Series | KWL-R1210BB | Blue | Black | 12.5 × 10.1 × 7.9 | 70.0 | 470 | Download | ||
KWL-R1210xxx Series | KWL-R1210AB | Orange | Black | 12.5 × 10.1 × 7.9 | 50.0 | 605 | Download | ||
KWL-R1210xxx Series | KWL-R1210WB | White | Black | 12.5 × 10.1 × 7.9 | 130.0 | x=0.30, y=0.31 | Download | ||

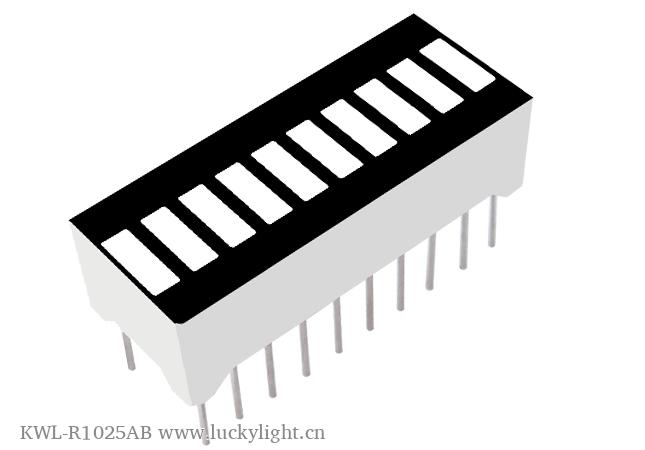

KWL-R1025xxB Series | KWL-R1025AB | Orange | Black | 25.5 × 10.1 × 7.9 | 50.0 | 605 | Download | ||
KWL-R1025xxB Series | KWL-R1025BB | Blue | Black | 25.5 × 10.1 × 7.9 | 70.0 | 470 | Download | ||
KWL-R1025xxB Series | KWL-R1025GB | Yellow Green | Black | 25.5 × 10.1 × 7.9 | 20.0 | 572 | Download | ||
KWL-R1025xxB Series | KWL-R1025VB | Red | Black | 25.5 × 10.1 × 7.9 | 80.0 | 624 | Download | ||
KWL-R1025xxB Series | KWL-R1025WB | White | Black | 25.5 × 10.1 × 7.9 | 260.0 | x=0.30, y=0.31 | Download | ||
KWL-R7141xx Series | KWL-R7141AW | Orange | White | 14 × 7.5 × 8 | 52.0 | 605 | Download | ||
KWL-R7141xx Series | KWL-R7141BW | Blue | White | 14 × 7.5 × 8 | 72.0 | 470 | Download | ||
KWL-R7141xx Series | KWL-R7141GW | Yellow Green | White | 14 × 7.5 × 8 | 22.0 | 572 | Download | ||
KWL-R7141xx Series | KWL-R7141VW | Red | White | 14 × 7.5 × 8 | 84.0 | 624 | Download | ||
KWL-R7141xx Series | KWL-R7141WW | White | White | 14 × 7.5 × 8 | 270.0 | x=0.30, y=0.31 | Download | ||
KWL-C181xx Series | KWL-C181WW | White | White | Φ18 | 280.0 | x=0.30, y=0.31 | Download | ||
KWL-C181xx Series | KWL-C181VW | Red | White | Φ18 | 86.0 | 624 | Download | ||

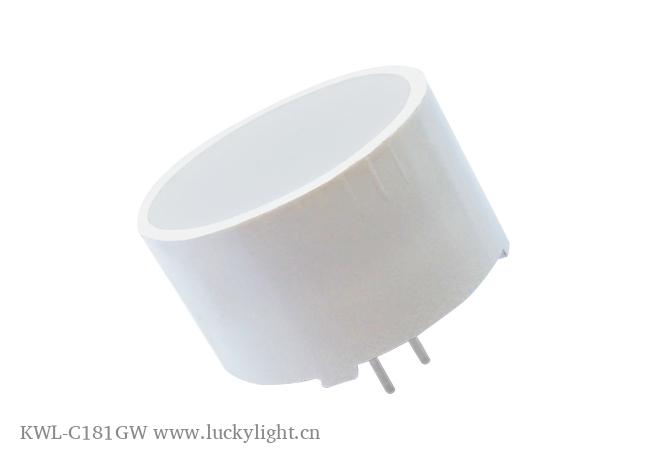

KWL-C181xx Series | KWL-C181GW | Yellow Green | White | Φ18 | 24.0 | 572 | Download | ||
KWL-C181xx Series | KWL-C181BW | Blue | White | Φ18 | 76.0 | 470 | Download | ||
KWL-C181xx Series | KWL-C181AW | Orange | White | Φ18 | 56.0 | 605 | Download |
