LED dot matrix displays are composed of an array of individual LEDs (light-emitting diodes) arranged in rows and columns. When assembled into a panel, these displays can showcase a wide range of characters, numbers, and simple graphics. The display mechanism involves illuminating specific pixels or dots on the LED matrix to form the desired visual elements.
Luckylight offers a diverse selection of LED dot matrix displays to cater to a variety of applications. Our LED dot matrix displays feature varying LED arrangements, including 5x7, 5x8, 8x8, 16x16, and 32x16 configurations. Additionally, our displays come in a wide array of emission colors, including green, red, yellow, white, blue, and orange. We also provide dual-color and RGB options to meet specific customer requirements.
LED dot matrix displays find widespread use in various public settings due to their versatility and visibility. They are widely used in:
At Luckylight, we provide a wide variety of LED dot matrix displays to meet the diverse needs of our customers. Our LED dot matrix displays are renowned for their high quality, durability, and long lifespan. To simplify your selection process, we offer a user-friendly filtering tool (▽) on our website that allows you to quickly narrow down your search based on specific criteria such as size, surface color, and emission color. If you have any questions or require assistance in finding the perfect LED dot matrix display for your application, please don't hesitate to contact our sales team. We are committed to providing exceptional customer support and ensuring your satisfaction.
Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Face Color |
Array Type
|
Dot Size (mm) |
Polarity |
λd(nm) CIE(x,y) |
DataSheet |
---|---|---|---|---|---|---|---|---|---|---|
Select |
Product Line
|
Part Number | View Picture |
Emitting Color
|
Face Color |
Array Type
|
Dot Size (mm) |
Polarity |
λd(nm) CIE(x,y) |
DataSheet |
KWM-20881xxxA Bi-color Series | KWM-20881ARGA-G5M |
|
Black | 8 × 8 | Φ1.9 | Row Anode |
|
Download | ||
KWM-30571xxx Series | KWM-30571CRR | Red | Red | 5 × 7 | Φ3.0 | Row Cathode | 630 | Download | ||
KWM-R30881xxB Series | KWM-R30881AAB | Orange | Black | 8 × 8 | 3.0 × 3.0 | Row Anode | 605 | Download | ||
KWM-R30881xxB Series | KWM-R30881ABB | Blue | Black | 8 × 8 | 3.0 × 3.0 | Row Anode | 470 | Download | ||
KWM-R30881xxB Series | KWM-R30881AGB | Yellow Green | Black | 8 × 8 | 3.0 × 3.0 | Row Anode | 572 | Download | ||
KWM-R30881xxB Series | KWM-R30881AVB | Red | Black | 8 × 8 | 3.0 × 3.0 | Row Anode | 624 | Download | ||
KWM-R30881xxB Series | KWM-R30881AWB | White | Black | 8 × 8 | 3.0 × 3.0 | Row Anode | x=0.30, y=0.31 | Download | ||
KWM-R30881xxB Series | KWM-R30881CAB | Orange | Black | 8 × 8 | 3.0 × 3.0 | Row Cathode | 605 | Download | ||
KWM-R30881xxB Series | KWM-R30881CBB | Blue | Black | 8 × 8 | 3.0 × 3.0 | Row Cathode | 470 | Download | ||
KWM-R30881xxB Series | KWM-R30881CGB | Yellow Green | Black | 8 × 8 | 3.0 × 3.0 | Row Cathode | 572 | Download | ||
KWM-R30881xxB Series | KWM-R30881CVB | Red | Black | 8 × 8 | 3.0 × 3.0 | Row Cathode | 624 | Download | ||
KWM-R30881xxB Series | KWM-R30881CWB | White | Black | 8 × 8 | 3.0 × 3.0 | Row Cathode | x=0.30, y=0.31 | Download | ||
KWM-44571xxB Series | KWM-44571AAB | Orange | Black | 5 × 7 | 3.5 × 3.5 | Row Anode | 605 | Download | ||
KWM-44571xxB Series | KWM-44571ABB | Blue | Black | 5 × 7 | 3.5 × 3.5 | Row Anode | 470 | Download | ||
KWM-44571xxB Series | KWM-44571AGB | Yellow Green | Black | 5 × 7 | 3.5 × 3.5 | Row Anode | 572 | Download | ||

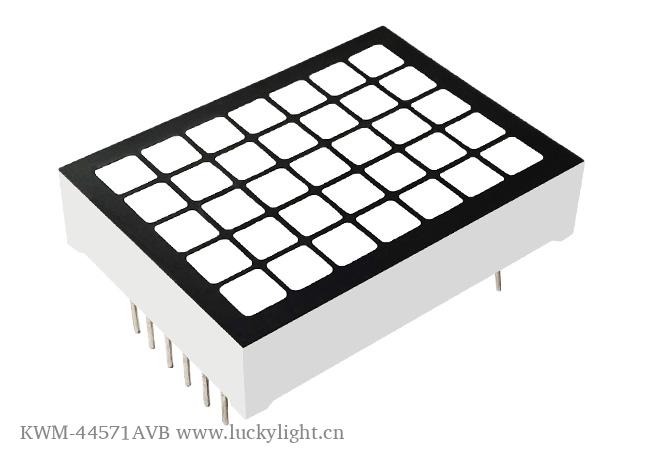

KWM-44571xxB Series | KWM-44571AVB | Red | Black | 5 × 7 | 3.5 × 3.5 | Row Anode | 624 | Download | ||
KWM-44571xxB Series | KWM-44571AWB | White | Black | 5 × 7 | 3.5 × 3.5 | Row Anode | x:0.30,y:0.31 | Download | ||
KWM-44571xxB Series | KWM-44571CAB | Orange | Black | 5 × 7 | 3.5 × 3.5 | Row Cathode | 605 | Download | ||
KWM-44571xxB Series | KWM-44571CBB | Blue | Black | 5 × 7 | 3.5 × 3.5 | Row Cathode | 470 | Download | ||
KWM-44571xxB Series | KWM-44571CGB | Yellow Green | Black | 5 × 7 | 3.5 × 3.5 | Row Cathode | 572 | Download | ||
KWM-44571xxB Series | KWM-44571CVB | Red | Black | 5 × 7 | 3.5 × 3.5 | Row Cathode | 624 | Download | ||
KWM-44571xxB Series | KWM-44571CWB | White | Black | 5 × 7 | 3.5 × 3.5 | Row Cathode | x:0.30,y:0.31 | Download | ||
KWM-50887xRGBT Series | KWM-50887ARGBT |
|
Black | 8 × 8 | Φ5.0 | Row Anode |
|
Download | ||
KWM-50887xRGBT Series | KWM-50887CRGBT |
|
Black | 8 × 8 | Φ5.0 | Row Cathode |
|
Download | ||
KWM-2032161xxx Series | KWM-2032161AV | Red | Black | 32 × 16 | Φ2.0 | Row Anode | 624 | Download | ||
KWM-2032161xxx Series | KWM-2032161AG | Yellow Green | Black | 32 × 16 | Φ2.0 | Row Anode | 572 | Download | ||
KWM-2032161xxx Series | KWM-2032161AA | Orange | Black | 32 × 16 | Φ2.0 | Row Anode | 605 | Download | ||
KWM-2016161xxB Series | KWM-2016161AVB | Red | Black | 16 × 16 | Φ1.9 | Row Anode | 624 | Download | ||
KWM-2016161xxB Series | KWM-2016161AGB | Yellow Green | Black | 16 × 16 | Φ1.9 | Row Anode | 572 | Download | ||
KWM-2016161xxB Series | KWM-2016161AAB | Orange | Black | 16 × 16 | Φ1.9 | Row Anode | 605 | Download | ||

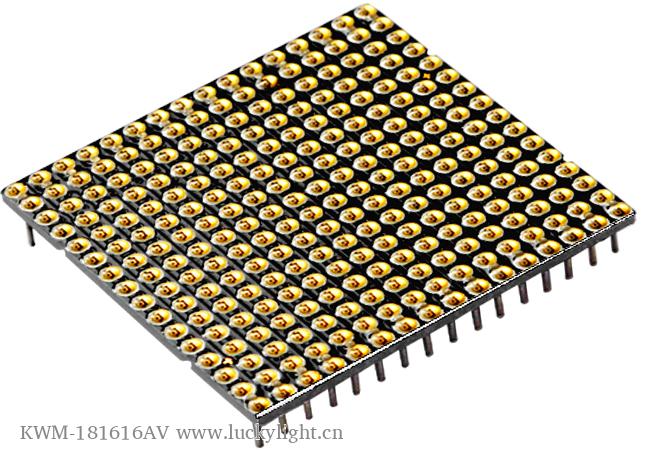

KWM-181616xxx Series | KWM-181616AV | Red | N/A | 16 × 16 | Φ1.8 | Row Anode | 624 | Download | ||
KWM-181616xxx Series | KWM-181616AG | Yellow Green | N/A | 16 × 16 | Φ1.8 | Row Anode | 572 | Download | ||
KWM-181616xxx Series | KWM-181616AA | Orange | N/A | 16 × 16 | Φ1.8 | Row Anode | 605 | Download | ||
KWM-50884xxxxB Multi-Color Series | KWM-50884CRGBB |
|
Black | 8 × 8 | Φ5.0 | Row Cathode |
|
Download | ||
KWM-50884xxxxB Multi-Color Series | KWM-50884ARGBB |
|
Black | 8 × 8 | Φ5.0 | Row Anode |
|
Download | ||
KWM-50881xxB Series | KWM-50881CWB | White | Black | 8 × 8 | Φ5.0 | Row Cathode | x=0.30, y=0.31 | Download | ||
KWM-50881xxxB Bi-color Series | KWM-50881CVPGB |
|
Black | 8 × 8 | Φ5.0 | Row Cathode |
|
Download | ||
KWM-50881xxB Series | KWM-50881CVB | Red | Black | 8 × 8 | Φ5.0 | Row Cathode | 624 | Download | ||
KWM-50881xxB Series | KWM-50881CGB | Yellow Green | Black | 8 × 8 | Φ5.0 | Row Cathode | 572 | Download | ||
KWM-50881xxB Series | KWM-50881CBB | Blue | Black | 8 × 8 | Φ5.0 | Row Cathode | 470 | Download | ||
KWM-50881xxB Series | KWM-50881CAB | Orange | Black | 8 × 8 | Φ5.0 | Row Cathode | 605 | Download | ||
KWM-50881xxB Series | KWM-50881AWB | White | Black | 8 × 8 | Φ5.0 | Row Anode | x=0.30, y=0.31 | Download | ||
KWM-50881xxxB Bi-color Series | KWM-50881AVPGB |
|
Black | 8 × 8 | Φ5.0 | Row Anode |
|
Download | ||
KWM-50881xxB Series | KWM-50881AVB | Red | Black | 8 × 8 | Φ5.0 | Row Anode | 624 | Download | ||
KWM-50881xxB Series | KWM-50881AGB | Yellow Green | Black | 8 × 8 | Φ5.0 | Row Anode | 572 | Download | ||
KWM-50881xxB Series | KWM-50881ABB | Blue | Black | 8 × 8 | Φ5.0 | Row Anode | 470 | Download | ||
KWM-50881xxB Series | KWM-50881AAB | Orange | Black | 8 × 8 | Φ5.0 | Row Anode | 605 | Download | ||
KWM-50581xxB Series | KWM-50581CWB | White | Black | 5 × 8 | Φ5.0 | Row Cathode | x=0.30, y=0.31 | Download | ||
KWM-50581xxB Series | KWM-50581CVB | Red | Black | 5 × 8 | Φ5.0 | Row Cathode | 624 | Download | ||
KWM-50581xxB Series | KWM-50581CGB | Yellow Green | Black | 5 × 8 | Φ5.0 | Row Cathode | 572 | Download |
