LED Display/7-segment Display

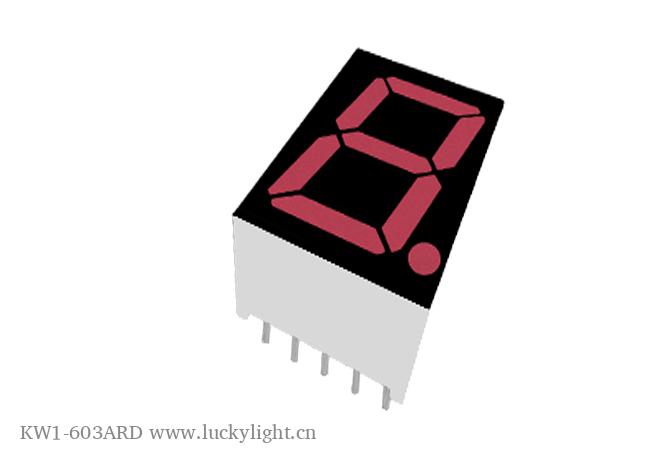

The KW1-603ARD is a 0.6-inch (15.24 mm) red through-hole single-digit 7-segment LED display, also referred to as a 0.6-inch (15.24 mm) red through-hole single-digit LED numeric display. This device features a common anode configuration with red segments and a black surface.
Designed with industry-standard package dimensions and pin configurations, this 0.6-inch (15.24 mm) through-hole seven-segment LED display is available in both common anode and common cathode options. The display offers color choices including red, green, blue, and orange. Engineered for viewing distances up to 7 meters (23 feet), the 0.6-inch (15.24 mm) LED seven-segment display is an excellent choice for various applications. It includes a right-hand decimal point, making it ideal for most use cases. Additionally, its low-current design provides pin-to-pin compatibility, making it suitable for a broad range of indoor digital display applications.
Emitting Color | Red |
Face Color | Black |
Digit Height | 15.24mm (0.6") |
Polarity | Common Anode |
Luminous IntensityTyp.(mcd) | 18.0 |
λd(nm) CIE(x,y) |
635 |
Digit Number | Single Digit |
